Aeroquip® 4UQS25HARDS11

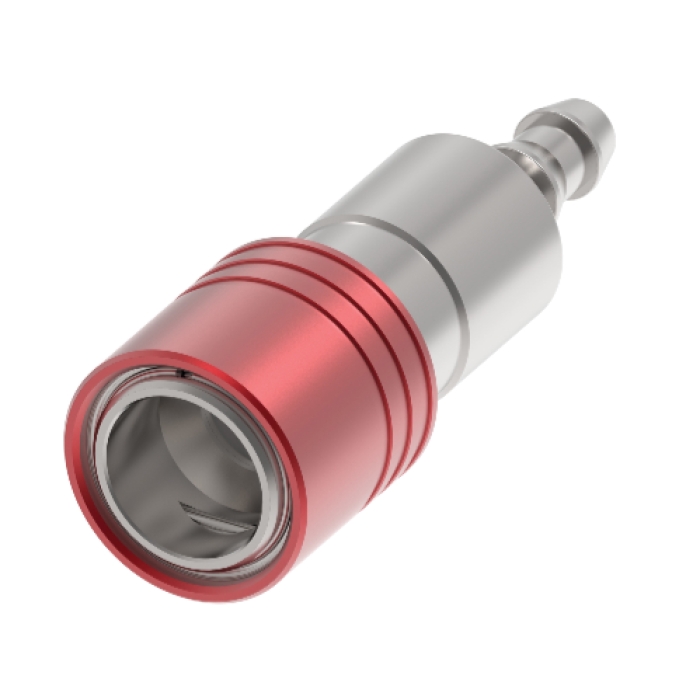

Danfoss Hansen® UQD Series 4UQS25HARDS11 Coupling Socket, 1/4 in Quick Disconnect x 1/4 in Female Hose Thread
- Manufacturers: Danfoss
- Brand Name: Aeroquip®
- Tipco Part No: AER 4UQS25HARDS11
- MPN: 4UQS25HARDS11
- UPC: 639789270962
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Danfoss Hansen's compact version of the UQD is designed for thermal management applications and complies with OCP UQD specifications. Danfoss has developed a shortened version of the socket to offer a compact, lightweight UQD with the same flow and pressure drop characteristics. The compact version of the UQD still offers color-coded identification and QR code marking to help visualize hot and cold parts of the cooling system and track parts.
Danfoss Coupling Socket, UQD Series, 1/4 x 1/4 in Connection, Quick Disconnect x Female Hose Thread, Material Construction: 303 Stainless Steel, Red, 0.55 in Hex, 0.97 in Dia x 2.88 in L, 232 psi Maximum Operating Pressure, -40 to 302 deg F Operating Temperature, 2-Way Valve, Straight, 1.7 gpm Flow Rate, EPDM Seal
- Designed per OCP (Open Compute Project) UQD specification
- Push-to-connect design
- High flow and no spillage
- Double shut off - flat face valves
- Exceeds OCP flow ratings at least by 25% resulting in reduction in overall energy consumption
- Best in class force to connect
- Standard material: 303 stainless steel provides broad fluid compatibility
- Standard seal material: EPDM
- Color anodized aluminum sleeves
- Color coded (red/blue) sleeves on socket and O-rings on plug
- Wide range of terminal end options: ORB, BSPP on plug and push on hose on socket. Additional configurations available upon request
- Operating temperature -40 deg C to +150 deg C
- Typical working pressure: 6.9 bar, up to 20 bar for smaller sizes
