Danfoss Hansen Universal Quick Disconnect Blind-Mate (UQDB) has been designed with OCP (Open Compute Project) community to set industry standard for thermal management application in data centers. This quick disconnect coupling is available in 4 different sizes (as the UQD: -02/-04/-06/-08) and complies with OCP specification requirements. Danfoss UQDB offers a selfalignment feature to help connect in location with limited access or visibility and guarantees 100% helium-leak testing on every coupling.

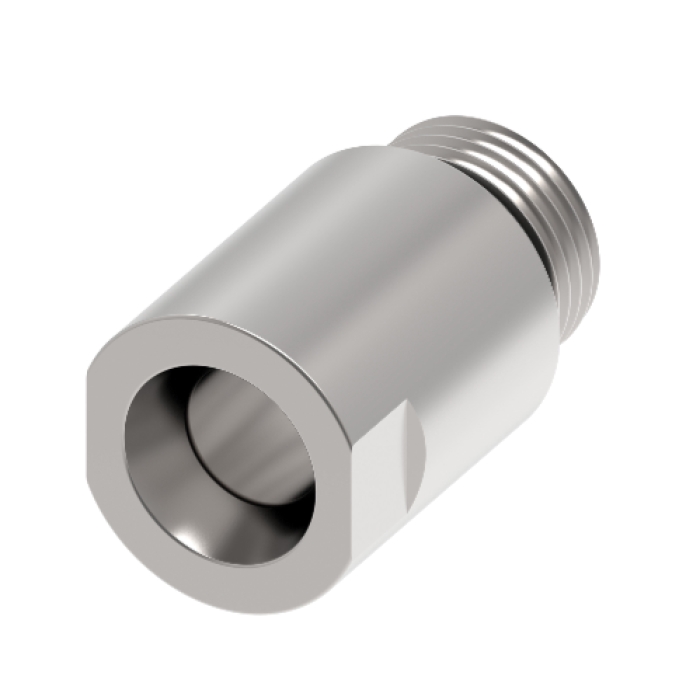

Danfoss Blind-Mate Coupling Socket, UQDB Series, 3/8 x 7/8 in Connection, Quick Disconnect x Male ORB, Material Construction: 303 Stainless Steel, 1.06 in Hex, 1.11 in Dia x 1.74 in L, 145 psi Maximum Operating Pressure, 62 to 212 deg F Operating Temperature
- Designed per OCP UQDB specifications
- "Blind-connection" thanks to self- alignment feature with radial compensation of 1 mm
- Push-to-connect design
- Direct connection between servers and manifolds
- High flow and reduced pressure drop for an improved system efficiency
- Flat-face dry break design to avoid spillage during connection/ disconnection
- Sizes available: -02/-04/-06/-08* (*to be launched)
- High reliability and 100% helium-leak tested
- Standard material: 303 stainless steel for excellent corrosion resistance
- Standard seal material: EPDM for excellent fluid compatibility
- Terminal ends are ORB
- Operating temperature: up to +100 deg C
- Working pressure: min. 10 bar
- QR code marking to help identify and track production parts
