CPC® 4509800

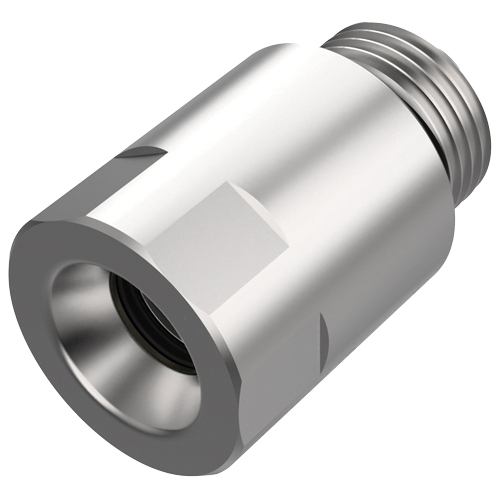

CPC® Everis® UQDB04 Series 4509800 Valved Coupling Socket, 1/4 in Quick Disconnect x 1/2 in SAE Threaded, Passivated

  • Manufacturers: Dover Corporation
  • Brand Name: CPC®
  • Tipco Part No: CPC 4509800
  • MPN: 4509800
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Everis® UQDB04 Series quick disconnect couplings Developed according to the OCP standard for liquid cooling, CPC Everis® UQDB04 quick disconnects (QDs) with 1/4" flow provide ultra-reliable connections and dripless disconnections. Manufactured out of stainless steel, Everis UQDB04 QDs are inherently resistant to corrosion. These blindmate connectors for rack-mounted integration feature CPC's patented valve design for high-flow capacity.

CPC® Valved Coupling Socket, UQDB04 Series, 1/4 x 1/2 in Connection, Quick Disconnect x SAE Threaded, Material Construction: 303 Stainless Steel, Passivated, Metallic, 0.98 in Dia x 1.56 in L, 120 psi Maximum Operating Pressure, 36 to 167 deg F Operating Temperature, 1.3 Cv Flow Coefficient, In-Line Mount, EPDM Seal, Stainless Steel Valve Spring

  • Non-spill valve design
  • Redundant seals in connected state
  • High flow capacity with low pressure drop
  • Threaded terminations
  • Designed for OCP interoperability
  • Designed and manufactured for scale
  • pdfSpecification Sheet https://assets.unilogcorp.com/526/ITEM/DOC/CPC_4509800_Specification_Sheet.pdf
