Alemite® 1911-B1

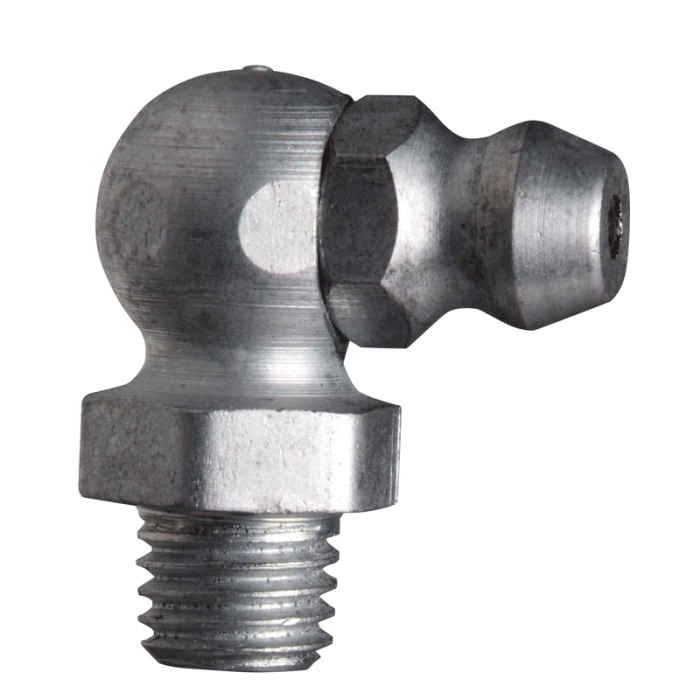

Alemite® 1911-B1 Steel Hydraulic 90 deg Grease Fitting, 1/4-28 UNF Taper Threaded

  • Manufacturers: Alemite Corp
  • Brand Name: Alemite®
  • Tipco Part No: ALE 1911-B1
  • MPN: 1911-B1
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Alemite® Hydraulic 90 deg Grease Fitting, Connection Size 1: 1/4-28 UNF, Connection Type 1: Taper Threaded, Steel, Finish: Zinc-Plated, 13/64 in Length Shank, 7/64 in Length Thread, Hex Size: 3/8 in, Check Valve Type: Ball, 3/4 in Length

Product Type      :      Hydraulic Grease Fitting
Shank Length      :      13/64 in
Thread Length      :      7/64 in
Hex Size      :      3/8 in
Check Valve Type      :      Ball
Length      :      3/4 in
Connection Size 1      :      1/4-28 UNF
Connection Type 1      :      Taper Threaded
Material      :      Steel
Finish      :      Zinc-Plated

Alemite® 1/4-28 taper thread fittings are used on most cars and trucks, as well as many industrial machines. It is recommended that SAE-LT taper threads be assembled into 1/4-28 UNF, Class 3B, straight threaded holes having a modified maximum minor diameter of 0.2151 in, to ensure 75% minimum thread height.

  • Exceeds 72 hr salt spray test
  • Dirt excluding check ball

Standards/Certifications: RoHS Compliant
