Alemite® 2109 ALE 2109 | Tipco Technologies
Alemite® 2109
Send Print
  1. pin-int

Alemite® 2109

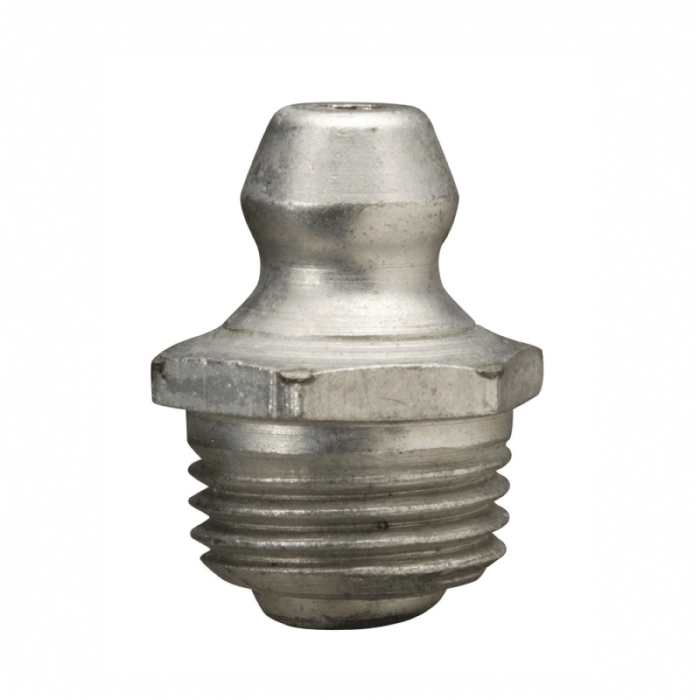

Alemite® 2109 Steel Hydraulic Straight Grease Fitting, M10 x 1 Taper Threaded, 8000 psi

  • Manufacturers: Alemite Corp
  • Brand Name: Alemite®
  • Tipco Part No: ALE 2109
  • MPN: 2109
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Alemite® Hydraulic Straight Grease Fitting, Connection Size 1: M10 x 1, Connection Type 1: Taper Threaded, Steel, Finish: Trivalent Zinc-Plated, 1/4 in Length Shank, 0.16 in Length Thread, Hex Size: 11 mm, 8000 psi, Check Valve Type: Ball, 5/8 in Length

Product Type      :      Hydraulic Grease Fitting
Shank Length      :      1/4 in
Thread Length      :      0.16 in
Hex Size      :      11 mm
Pressure Rating      :      8000 psi
Check Valve Type      :      Ball
Length      :      5/8 in
Connection Size 1      :      M10 x 1
Connection Type 1      :      Taper Threaded
Material      :      Steel
Finish      :      Trivalent Zinc-Plated
  • Exceeds 72 hr salt spray test
  • Dirt excluding check ball

Standards/Certifications: DIN 71412

  • RoHS Compliant
