Alemite® 3014-B

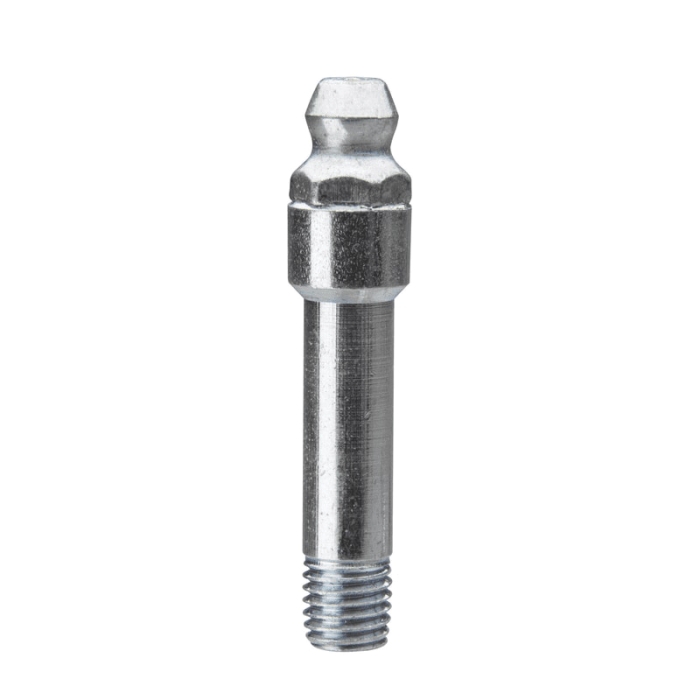

Alemite® 3014-B Steel Hydraulic Straight Grease Fitting, 1/4-28 UNF Taper Threaded

  • Manufacturers: Alemite Corp
  • Brand Name: Alemite®
  • Tipco Part No: ALE 3014-B
  • MPN: 3014-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Alemite® Hydraulic Straight Grease Fitting, Connection Size 1: 1/4-28 UNF, Connection Type 1: Taper Threaded, Steel, Finish: Zinc-Plated, 1 in Length Shank, 13/64 in Length Thread, Hex Size: 5/16 in, Check Valve Type: Ball, 1-5/8 in Length

Product Type      :      Hydraulic Grease Fitting
Shank Length      :      1 in
Thread Length      :      13/64 in
Hex Size      :      5/16 in
Check Valve Type      :      Ball
Length      :      1-5/8 in
Connection Size 1      :      1/4-28 UNF
Connection Type 1      :      Taper Threaded
Material      :      Steel
Finish      :      Zinc-Plated

Alemite® 1/4-28 taper thread fittings are used on most cars and trucks, as well as many industrial machines. It is recommended that SAE-LT taper threads be assembled into 1/4-28 UNF, Class 3B, straight threaded holes having a modified maximum minor diameter of 0.2151 in, to ensure 75% minimum thread height.

  • Exceeds 72 hr salt spray test
  • Dirt excluding check ball

Standards/Certifications: RoHS Compliant
