Dixon® 250-G-TES
Send Print
  1. pin-int

Dixon® 250-G-TES

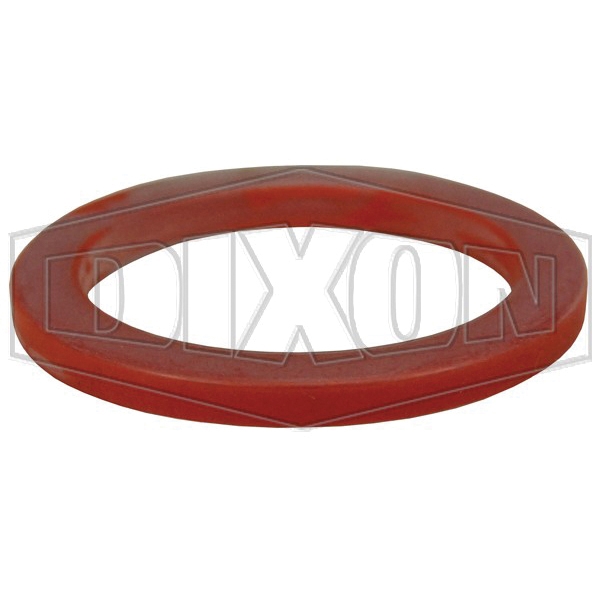

Dixon® 250-G-TES Red/Translucent PTFE (FEP) Encapsulated Silicone Cam and Groove Gasket, 2-1/2 in, 1/4 in Thick

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 250-G-TES
  • MPN: 250-G-TES
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Cam and Groove Gasket, Nominal Size: 2-1/2 in, 2-3/8 in ID, 3-1/8 in OD, 1/4 in Thickness, 125 psi, 225 deg F, PTFE (FEP) Encapsulated Silicone, Red/Translucent

California residents see Prop 65 WARNINGS

Product Type      :      Cam and Groove Gasket
Nominal Size      :      2-1/2 in
Inside Diameter      :      2-3/8 in
Outside Diameter      :      3-1/8 in
Thickness      :      1/4 in
Pressure Rating      :      125 psi
Temperature Rating      :      225 deg F
Material      :      PTFE (FEP) Encapsulated Silicone
Color      :      Red/Translucent

Safety Notes:

  • The torque (force) required to close the handles on a pair of cam and groove fittings will vary according to the gasket chosen.
  • Maximum operating temperatures for specific chemicals may be lower.
  • Contact Dixon® for specific recommendations.
