Dixon® EZL300-G-BU
Send Print
  1. pin-int

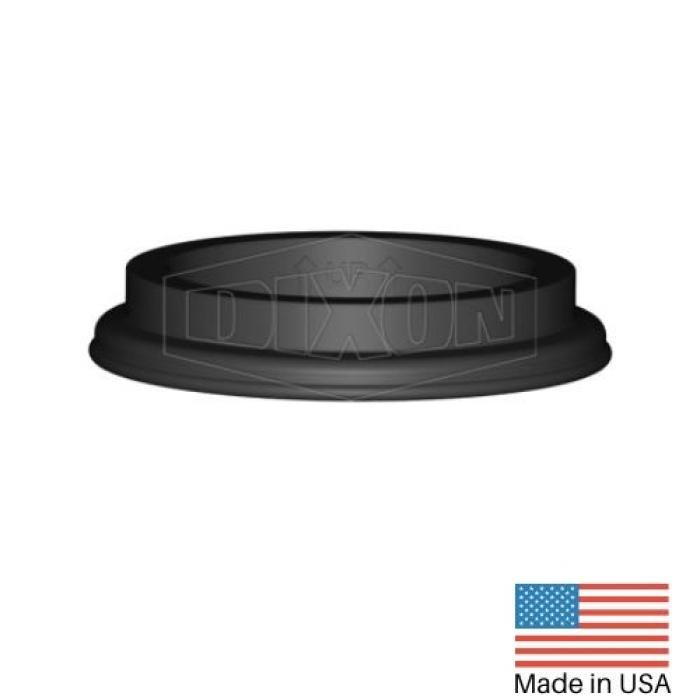

Dixon® EZL300-G-BU

Dixon® EZLink™ EZL300-G-BU Buna-N Replacement Gasket, 3 in

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN EZL300-G-BU
  • MPN: EZL300-G-BU
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® EZLink™ Replacement Gasket, Connection Size 1: 3 in, Buna-N

California residents see Prop 65 WARNINGS

Material      :      Buna-N

Safety Notes:

  • Take the seal out and check for any cracks, tears, nicks and make sure media is not trapped in the bellows area.
  • If any damage to the seal, replace with a new Dixon® bellow seal that is compatible with the material that is to be conveyed.
  • The seal is marked with directional arrows and the word 'up' in 4 locations on the inside diameter indicating which way to insert it into the coupler.
  • Arrows should point at you.
  • Warning! Only use EZLink™ seals for this coupling system.
  • Traditional cam and groove gaskets, or other types of seals are not compatible and will fail.
  • If there is any question about which gasket to install, call Dixon® at 800-355-1991 for a recommendation.
  • video www.youtube.com/embed/7eE5XqMy8k4
