Thermoseal® 4IN 150# FULL-FACE 1/8 TC-1003 TIPCO 1-400-830-125 | Tipco Technologies
Thermoseal® 4IN 150# FULL-FACE 1/8 TC-1003
Send Print
  1. pin-int

Thermoseal® 4IN 150# FULL-FACE 1/8 TC-1003

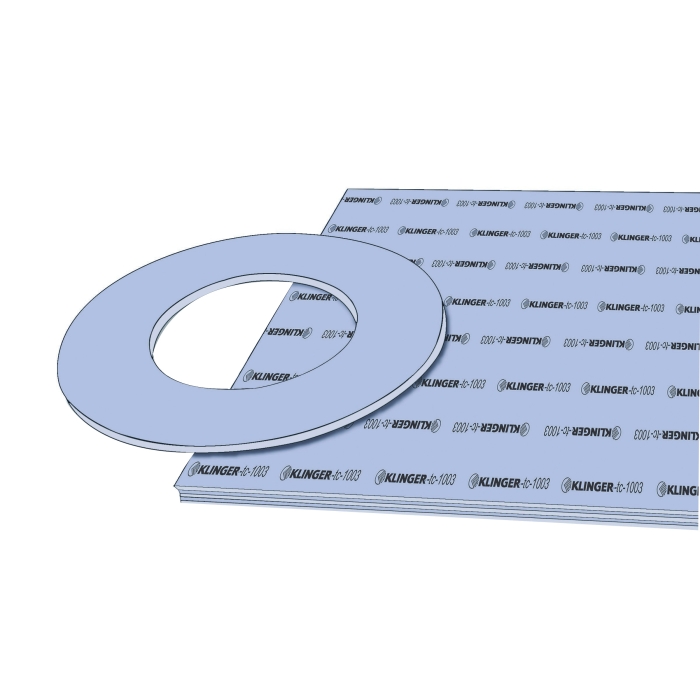

Thermoseal® 4IN 150# FULL-FACE 1/8 TC-1003 Light Blue PTFE Full Face Gasket, 4 in, 1/8 in Thick

  • Manufacturers: Klinger
  • Brand Name: Thermoseal®
  • Tipco Part No: TIPCO 1-400-830-125
  • MPN: 4IN 150# FULL-FACE 1/8 TC-1003
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Thermoseal® Full Face Gasket, Nominal Size: 4 in, 4 in ID, 1/8 in Thickness, 1235 psi, -450 to 500 deg F, PTFE, Light Blue

Product Type      :      Full Face Gasket
Pressure Rating      :      1235 psi
Temperature Rating      :      -450 to 500 deg F
Material      :      PTFE
Color      :      Light Blue
Nominal Size      :      4 in
Inside Diameter      :      4 in
Thickness      :      1/8 in

KLINGER® TC-1003 is a high-quality, yet cost-effective biaxial oriented modified PTFE gasket material with hollow glass spheres. This material offers superior sealability, excellent torque retention, and reduced creep relaxation. Uses include most chemicals. It also works well on glass-lined flanges. Gaskets cut from this material are exceptionally effective when lower bolt loads are needed to effect a seal.
