Teadit® 911-1756-1606-304/GRAPH-175
Send Print
  1. pin-int

Teadit® 911-1756-1606-304/GRAPH-175

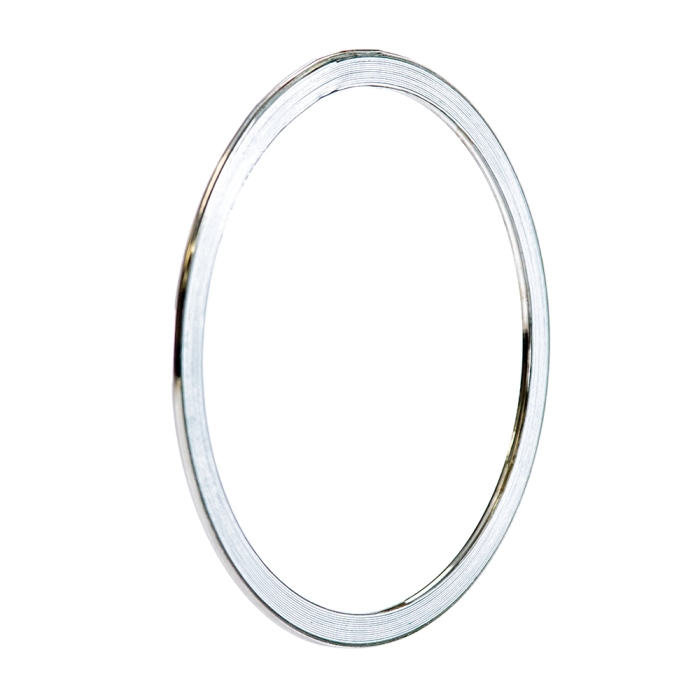

Teadit® Metalflex® 911 304 Stainless Steel Spiral Wound Gasket, 16-1/16 in

  • Manufacturers: Teadit
  • Brand Name: Teadit®
  • Tipco Part No: TEA 911-1756-1606-304/GRAPH-175
  • MPN: 911-1756-1606-304/GRAPH-175
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Teadit® Metalflex® Spiral Wound Gasket, Nominal Size: 16-1/16 in, 16-1/16 in ID, 17-9/16 in OD, 0.175 in Thickness, 304 Stainless Steel, Gray/Yellow, Inner Ring: No, Filler Material: Graphite

Product Type      :      Spiral Wound Gasket
Material      :      304 Stainless Steel
Color      :      Gray/Yellow
Inner Ring      :      No
Filler Material      :      Graphite
Nominal Size      :      16-1/16 in
Inside Diameter      :      16-1/16 in
Outside Diameter      :      17-9/16 in
Thickness      :      0.175 in

This is simplest style of spiral wound gasket, consisting of a circular winding without centering or inner rings. Spiral wound gaskets Style 911 are mainly used in tongue and groove or male and female. They are also used in equipment with space and weight limitations. Style 911-T has better sealability than a conventional heat exchanger double-jacketed gasket.

Applications: Used in male-and-female flanges and tongue and groove types of pipes or equipment and valve castles
