Teadit® 911-457-375-304-GRAPH-125 TEA 911-457-375-304-GRAPH-125 | Tipco Technologies
Teadit® 911-457-375-304-GRAPH-125
Send Print
  1. pin-int

Teadit® 911-457-375-304-GRAPH-125

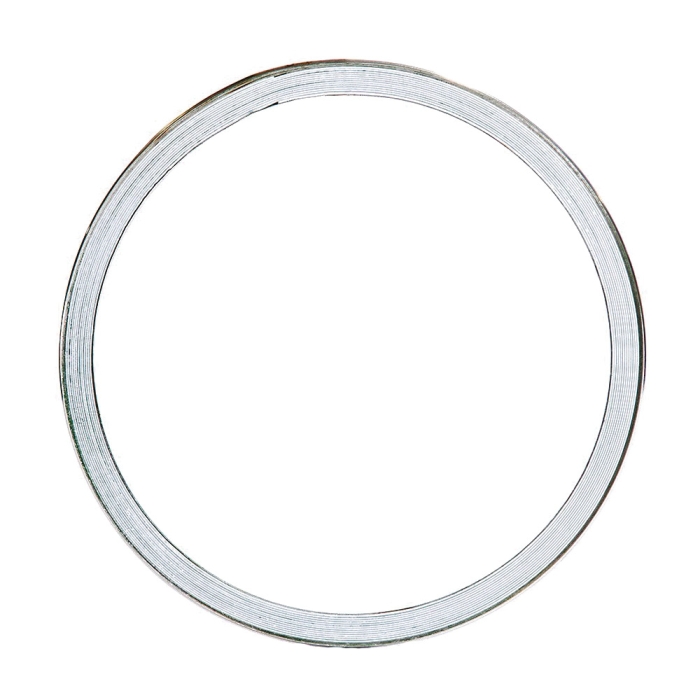

Teadit® Spiral Wound Gasket 304 Winding and Graphite Filler, Nominal Size

  • Manufacturers: Teadit
  • Brand Name: Teadit®
  • Tipco Part No: TEA 911-457-375-304-GRAPH-125
  • MPN: 911-457-375-304-GRAPH-125
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Teadit® Spiral Wound Gasket 304 Winding and Graphite Filler, Nominal Size Maximum Temperature 842 °F

Product Type      :      Spiral Wound Gasket
Material      :      304 Stainless Steel
Color      :      Gray/Yellow
Inner Ring      :      No
Filler Material      :      Graphite

This is simplest style of spiral wound gasket, consisting of a circular winding without centering or inner rings. Spiral wound gaskets Style 911 are mainly used in tongue and groove or male and female. They are also used in equipment with space and weight limitations. Style 911-T has better sealability than a coventional heat exchanger double-jacketed gasket.

  • pdfTIPCO GASKETS.pdf https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/TIPCO GASKETS.pdf
