Teadit® 913-12-600#-304-GRAPHITE

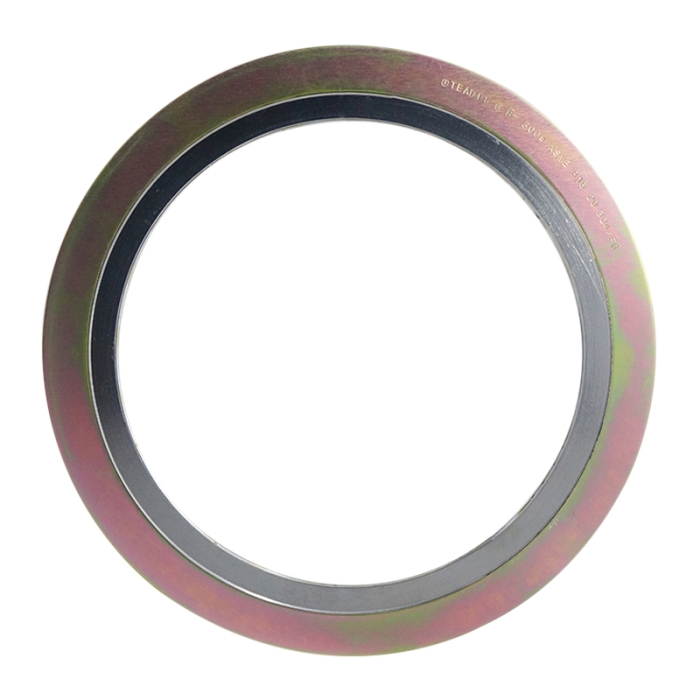

Teadit® Metalflex® 913 304 Stainless Steel Spiral Wound Gasket with Outer Ring, 12 in, 600 lb

  • Manufacturers: Teadit
  • Brand Name: Teadit®
  • Tipco Part No: TEA 913-12-600#-304-GRAPHITE
  • MPN: 913-12-600#-304-GRAPHITE
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Teadit® Metalflex® Spiral Wound Gasket with Outer Ring, Nominal Size: 12 in, 12.88 in ID, 14-1/4 in OD, 600 lb, 842 deg F, 304 Stainless Steel, Gray/Yellow, For Use With: ASME B16.5 and ASME 16.47 A/B Flanges, Inner Ring: No, Filler Material: Graphite, Operating Pressure: 600 psi

Product Type      :      Spiral Wound Gasket
Pressure Rating      :      600 lb
Temperature Rating      :      842 deg F
Material      :      304 Stainless Steel
Color      :      Gray/Yellow
For Use With      :      ASME B16.5 and ASME 16.47 A/B Flanges
Inner Ring      :      No
Filler Material      :      Graphite
Operating Pressure      :      600 psi
Nominal Size      :      12 in
Inside Diameter      :      12.88 in
Outside Diameter      :      14-1/4 in

The construction of this gasket is circular metal winding with an outer guide ring. The sealing element is made of the specified metal and soft sealing material. The standard pipe size gaskets are made to ASME B16.20. These gaskets are used in a very wide variety of applications.

Standards/Certifications: ASME B16.20
