TIPCO Sealing 40MOG-TS-600
Send Print
  1. pin-int

TIPCO Sealing 40MOG-TS-600

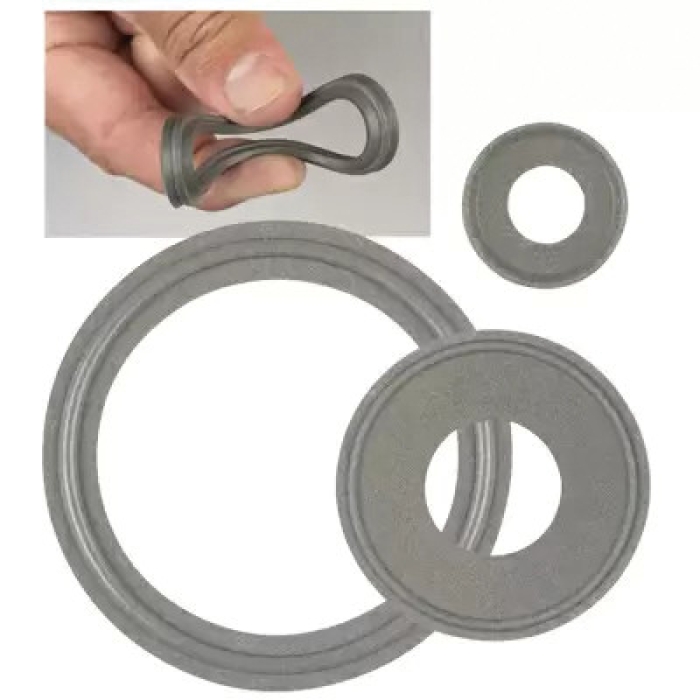

TIPCO Sealing Tuf-Steel® 40MOG-TS-600 Stainless Steel/PTFE High-Temperature Type I Gasket, 6 in, Gray

  • Manufacturers: TIPCO Technologies
  • Brand Name: TIPCO Sealing
  • Tipco Part No: RUB 40MOG-TS-600
  • MPN: 40MOG-TS-600
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

TIPCO Sealing Tuf-Steel® High-Temperature Type I Gasket, Nominal Size: 6 in, 5.822 in ID, 6.57 in OD, -350 to 550 deg F, 316L Stainless Steel/PTFE, Gray

Product Type      :      Gasket
Temperature Rating      :      -350 to 550 deg F
Material      :      316L Stainless Steel/PTFE
Color      :      Gray
Nominal Size      :      6 in
Inside Diameter      :      5.822 in
Outside Diameter      :      6.57 in

Composed of a unique proprietary blend of PTFE and 316L stainless steel, Tuf-Steel® is the choice for leak-proof performance and outstanding durability in steam applications.

  • Tuf-Steel® holds up under low and high-temperature
  • Superior creep resistance
  • Excellent expansion/contraction stability with minimal thermal expansion
  • Excellent chemical resistance
  • Stops leaks when correctly torqued (50 in/lb with Torque-Rite® TR-50)
  • No gasket extrusion into the sanitary tube ID
  • No obstruction of flow
  • Maintains sealing stability in T processes
  • Non-stick surface
  • Non-pigmented
  • Passivated to eliminate rouging
  • Tested for cryogenics use

Standards/Certifications: ASME-BPE

  • CGMP
  • Cytotoxicity Criteria
  • FDA CFR 21, 177.1550 Approved
  • U.S. Pharmacopeia Class VI Certified
  • USDA and 3-A Sanitary Standard

    Applications: Used widely in the food, dairy, beverage, biotech, pharmaceutical and all other sanitary process industries
