Gates® GlobalSpiral™ couplings provide and superior performance for extremely high pressure, high impulse spiral wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Maximum application coverage - GlobalSpiral™ couplings are available in more than 80 thread configurations, so finding the right fit for your assembly has never been easier. GlobalSpiral™ thread ends are able to handle working pressures up to 6000 psi. Coated with TuffCoat® plating - more than five-times better corrosion resistance than SAE ASTM B117 specification.

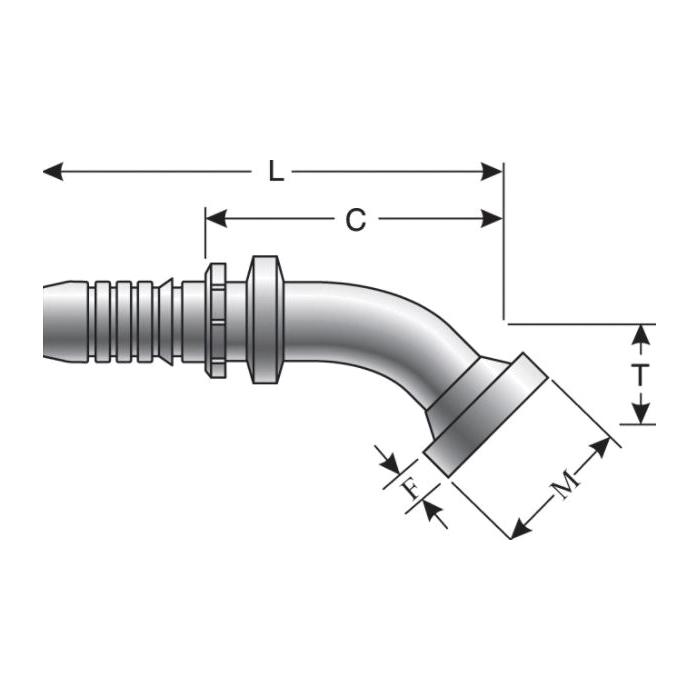

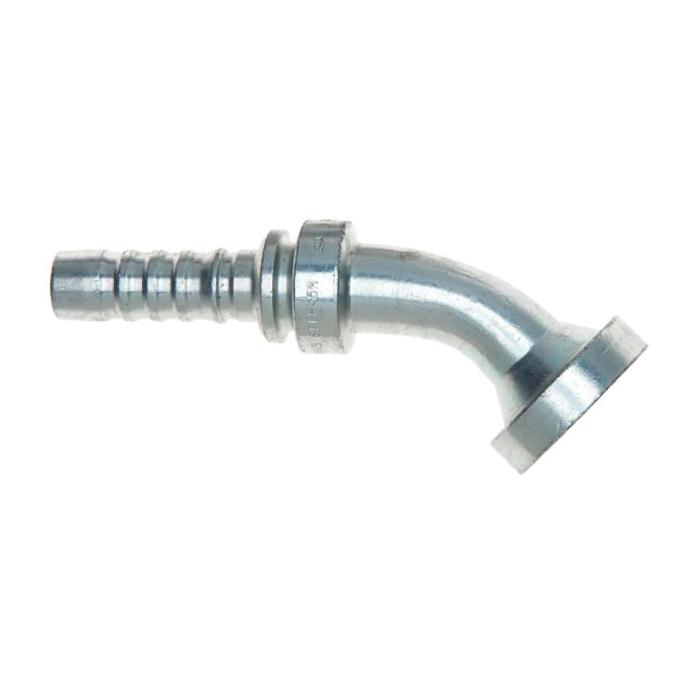

Gates® GlobalSpiral™ 45 deg Coupling, 45 deg Coupling Fitting, 3/4 in Connection Size 1, Hose Connection Type 1, Code 62 O-Ring Heavy Flange Connection Type 2, Hose|Flanged Connection, 4.56 in L, 6000 psi Maximum Operating Pressure, 250 deg F Operating, Additional Information: 1-1/4 in Flange Diameter, 0.31 in Flange Head Thickness, 2.55 in Cut-Off, 0.75 in Drop
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
- Reduces parts inventory by 30% since only one-stem is required for all spiral wire hose types
- Surpasses one-million impulse cycles
