MegaCrimp® couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp® coupling that makes it perform so well, the C insert. This C insert allows usage with different constructions and wall thickness. In addition, the C insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and two-wire hoses. An additional bonus MegaCrimp® couplings are a fully qualified EN performance coupling.

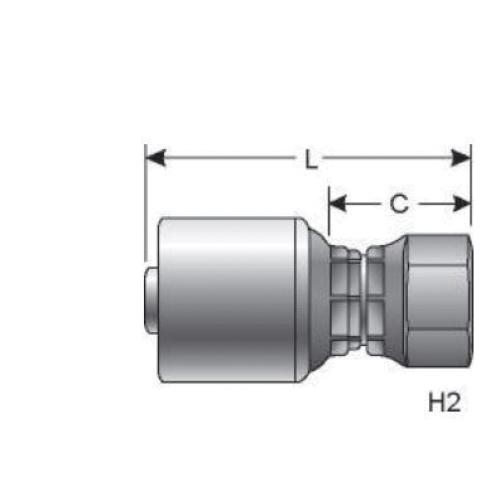

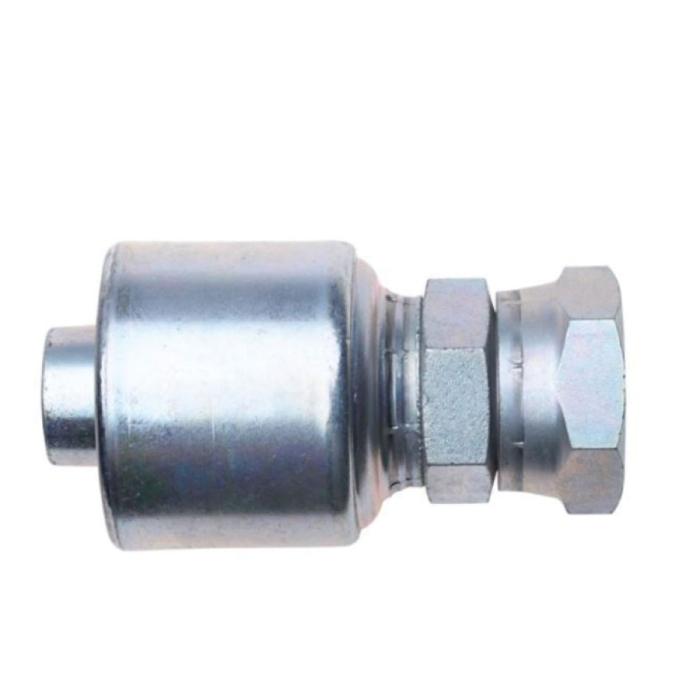

Gates® Crimp Straight Hose Fitting, Fitting Type: Hose Fitting, Connection Size 1: 3/8 in, Connection Type 1: Hose, Connection Size 2: 1/2 in, Connection Type 2: Female BSPP O-Ring Swivel, Connection Type: Hose|Female BSP Swivel, Hose Dash Size: 06, Cut-Off Factor: 0.71 in, TuffCoat®, 1/2-14 Thread, 27 mm Hex, 1.8 in L
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over torqueing by a strong armed worker, Gates® has engineered a solution Full-Torque Nut™ technology now available on Gates® MegaCrimp®
- MegaCrimp® couplings set a new standard for hydraulic couplings, the unique C insert ensures weep-free concentric crimping to keep equipment and the environment clean
- Surpassed one million impulse cycles during design testing
- Environmentally-friendly TuffCoat® plating for 3X better corrosion-resistant than SAE standard
- Includes O-ring sealing in flare
