Flexfab® 7727-0001

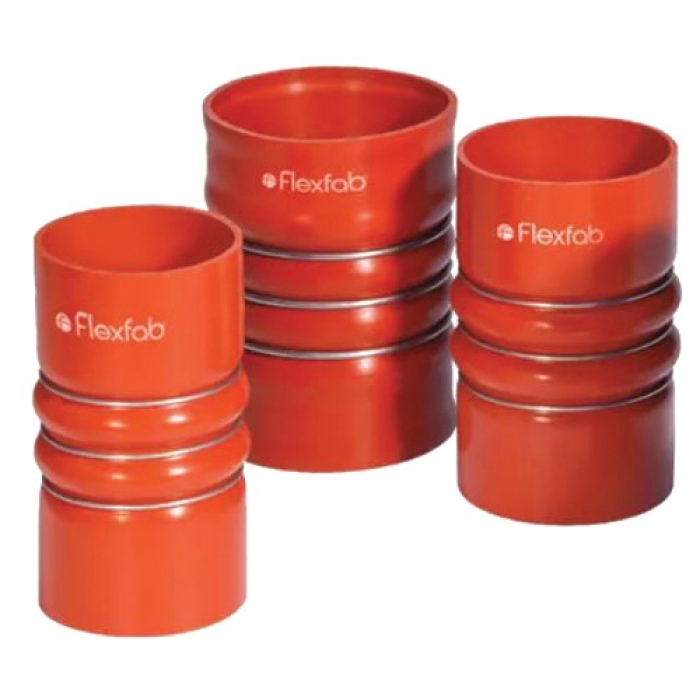

Flexfab® 7727-0001 Silicone Charge Air Connector Hose, 8 in L, 50 psi

  • Manufacturers: Flexfab
  • Brand Name: Flexfab®
  • Tipco Part No: FFB 7727-0001
  • MPN: 7727-0001
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Flexfab® Charge Air Connector Hose, Nominal Size: 4 in, 4.23 in OD, 4 in ID, 0.085/0.135 in Thick Wall, 8 in Length, 50 psi, Silicone, Construction: 4-Ply Silicone-Coated Meta-Aramid Fabric, Resistance Properties: Cool/Hot Temperature, Direct Sunlight, Oil, Ozone, -65 deg F Low, 500 deg F High

Product Type      :      Connector Hose
Pressure Rating      :      50 psi
Material      :      Silicone
Construction      :      4-Ply Silicone-Coated Meta-Aramid Fabric
Resistance Properties      :      Cool/Hot Temperature, Direct Sunlight, Oil, Ozone
Temperature Low      :      -65 deg F
Temperature High      :      500 deg F
Nominal Size      :      4 in
Outside Diameter      :      4.23 in
Inside Diameter      :      4 in
Wall Thickness      :      0.085/0.135 in
Length      :      8 in

CAC hose for the hot side features four-ply silicone bellows coated meta-aramid fabric with stainless steel pressure retention rings for intercooler applications.

  • Extreme temperature resistance
  • Extreme duty cycle tested for hostile engine environments
  • High-pressure resistance

Applications: Used on diesel truck engines to deliver pressurized intake air to the charge air intercooler and intake manifold
