Flexfab® 5508-100
Send Print
  1. pin-int

Flexfab® 5508-100

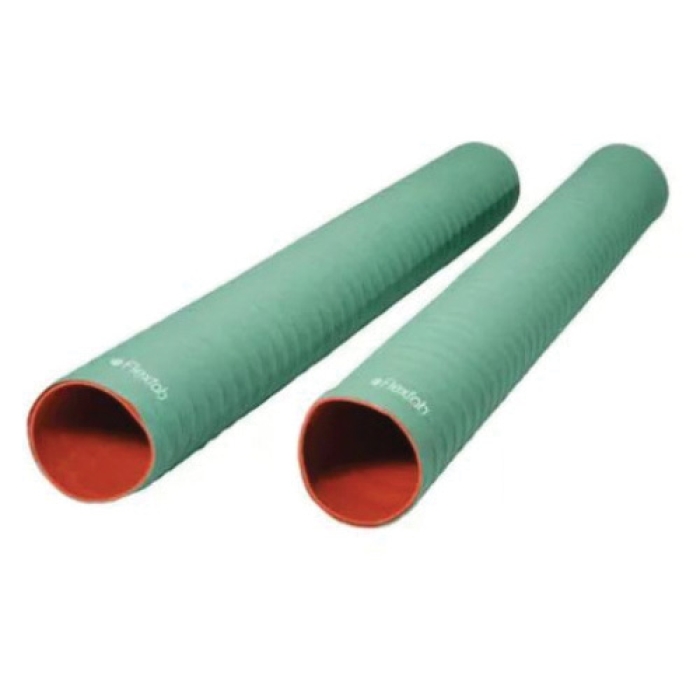

Flexfab® 5508 Polyester/Silicone Coolant Hose 1 in, 3 ft L, 550 psi

  • Manufacturers: Flexfab
  • Brand Name: Flexfab®
  • Tipco Part No: FFB 5508-100 3FT
  • MPN: 5508-100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Flexfab® Coolant Hose, Series: 5508, Nominal Size: 1 in, 1.42 in OD, 1 in ID, 0.13/0.18 in Thick Wall, 3 ft Length, 550 psi, Polyester/Silicone, Construction: 2 Plies of Polyester, Green, 3 in Bend Radius, Resistance Properties: Cool/Hot Temperature, Direct Sunlight, Oil, Ozone, -65 deg F Low, 350 deg F High

Product Type      :      Coolant Hose
Pressure Rating      :      550 psi
Material      :      Polyester/Silicone
Construction      :      2 Plies of Polyester
Color      :      Green
Bend Radius      :      3 in
Resistance Properties      :      Cool/Hot Temperature, Direct Sunlight, Oil, Ozone
Temperature Low      :      -65 deg F
Series      :      5508
Temperature High      :      350 deg F
Nominal Size      :      1 in
Outside Diameter      :      1.42 in
Inside Diameter      :      1 in
Wall Thickness      :      0.13/0.18 in
Length      :      3 ft

Wired coolant hose is reinforced with two plies of polyester reinforcement, with helical wire that allows for some forced curvature. This design makes it an ideal solution for heavy-duty pressure connections in hostile engine environments.

  • Extreme temperature resistance
  • Helical wire construction
  • Withstand vacuum pressures
  • Extreme duty cycle tested for hostile engine environments
  • Engineered for heavy-duty pressure connections
  • Wire reinforced coolant hoses are designed to handle vacuum and/or some forced curvature

Standards/Certifications: SAE J20R2 Class A Certified
