Aeroquip® 4245-0520-0100 AER 4245-0520-0100 | Tipco Technologies
Aeroquip® 4245-0520-0100
Send Print
  1. pin-int

Aeroquip® 4245-0520-0100

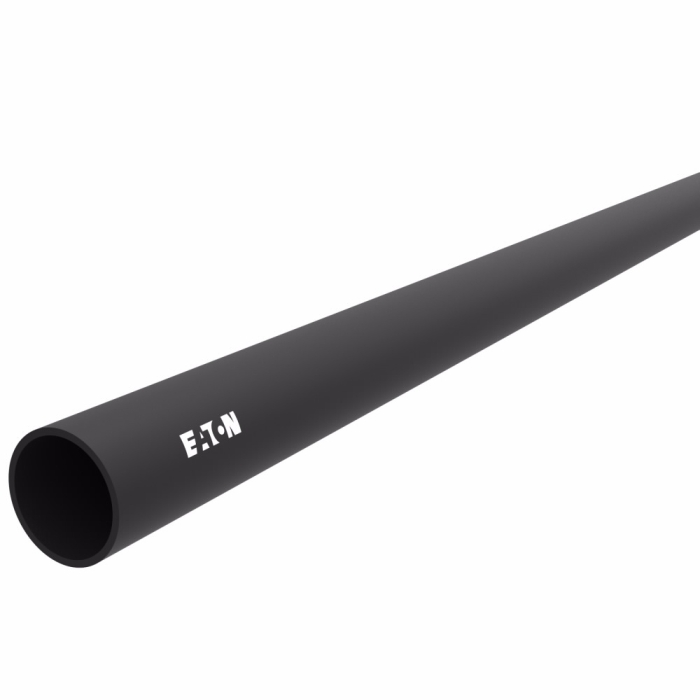

Aeroquip® 4245 Black Polyamide Air Brake Hose and Tubing, 100 ft L, 250 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 4245-0520-0100
  • MPN: 4245-0520-0100
  • UPC: 639789336064
  • Min. Order Qty: 100
  • Qty. Interval: 100
  • Register to see Availability

Aeroquip® Air Brake Hose and Tubing, 4245 Series, 0.315 in OD, 0.232 in ID, 0.04 in Thick Wall, 100 ft Length, 250 psi, Polyamide, Black, 1-1/8 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 200 deg F High

Product Type      :      Air Brake Hose and Tubing
Wall Thickness      :      0.04 in
Bend Radius      :      1-1/8 in
Resistance Properties      :      Abrasion
Series      :      4245
Outside Diameter      :      0.315 in
Inside Diameter      :      0.232 in
Length      :      100 ft
Material      :      Polyamide
Color      :      Black
Pressure Rating      :      250 psi

Applications: Auxiliary air systems, formed and straight air brake harness assemblies, formed tubes, truck air brake systems, trailer air brake systems
