Aeroquip® 3270-0610-0500
Send Print
  1. pin-int

Aeroquip® 3270-0610-0500

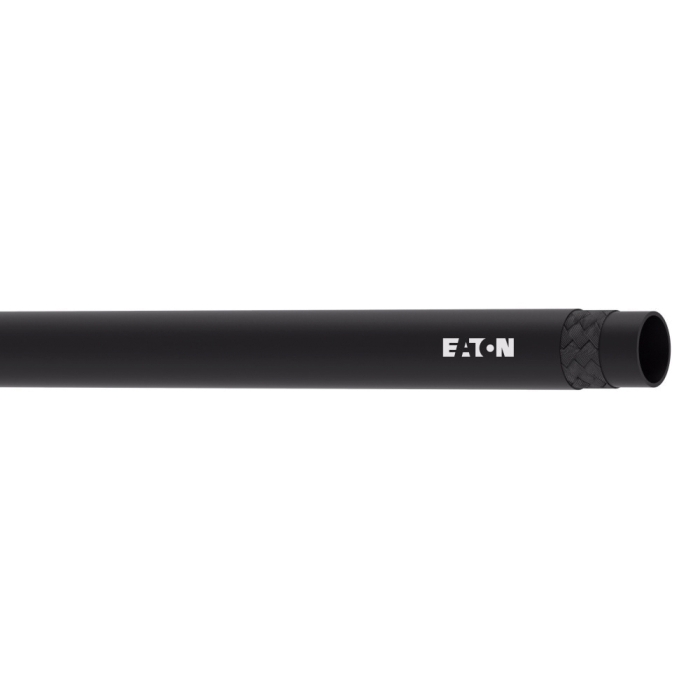

Aeroquip® Eclipse™ 3270 Black Nylon Air Brake Hose and Tubing, 500 ft L, 350 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 3270-0610-0500
  • MPN: 3270-0610-0500
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Eclipse™ Air Brake Hose and Tubing, 3270 Series, 0.37 in OD, 0.25 in ID, 0.06 in Thick Wall, 500 ft Length, 350 psi, Nylon, Polyester Cover, Construction: 1-Ply Braid Synthetic Fiber, Black, 1-1/2 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 200 deg F High

Product Type      :      Air Brake Hose and Tubing
Wall Thickness      :      0.06 in
Bend Radius      :      1-1/2 in
Resistance Properties      :      Abrasion
Series      :      3270
Outside Diameter      :      0.37 in
Inside Diameter      :      0.25 in
Length      :      500 ft
Material      :      Nylon
Color      :      Black
Pressure Rating      :      350 psi
  • Non-conductive
  • Premium abrasion-resistance
  • Ink jet layline style
  • 125000 cycles impulse cycle life

Applications: Auxiliary air systems, formed and straight air brake harness assemblies, formed tubes, trailer air brake systems, truck air brake systems

  • pdfSpecification Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_3270-0610-0100_SS.pdf
