Aeroquip® Eclipse™ Air Brake Tubing, 3270 Series, Nominal Size: 5/8 in, 0.62 in OD, 0.44 in ID, 750 ft Length, Nylon, Black, 900 psi, 0.09 in Thick Wall, 2-1/2 in Bend Radius, Resistance Properties: Abrasion, -65 to 200 deg F
| Product Type | : | Air Brake Tubing |
| Wall Thickness | : | 0.09 in |
| Bend Radius | : | 2-1/2 in |
| Resistance Properties | : | Abrasion |
| Temperature Rating | : | -65 to 200 deg F |
| Series | : | 3270 |
| Nominal Size | : | 5/8 in |
| Outside Diameter | : | 0.62 in |
| Inside Diameter | : | 0.44 in |
| Length | : | 750 ft |
| Material | : | Nylon |
| Color | : | Black |
| Pressure Rating | : | 900 psi |

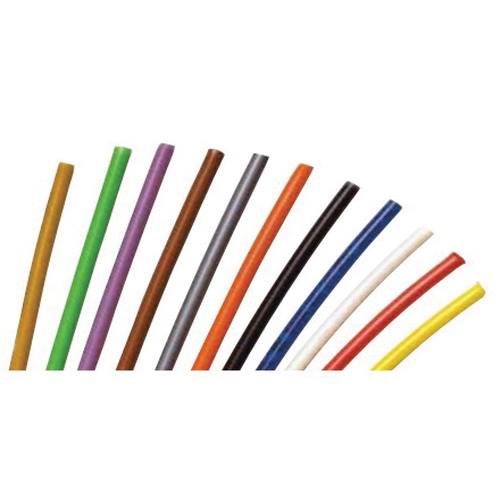

The 3270 Series is a nylon multi-layer air brake tubing for use in truck and trailer applications. It is UV stabilized, thermoformable and available in the 3/8 in through 3/4 in sizes.
- Superior abrasion resistance
- Ease of cutting
- Enhanced flexibility and extension
- Flow performance
- Standard and custom colors
Applications: For truck and trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies
