Aeroquip® 4247-0416-0100 AER 4247-0416-0100 | Tipco Technologies
Aeroquip® 4247-0416-0100
Send Print
  1. pin-int

Aeroquip® 4247-0416-0100

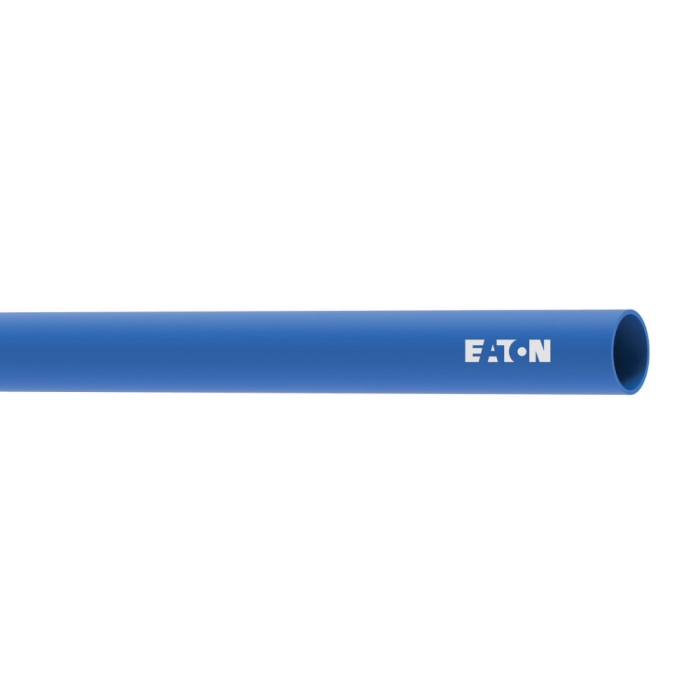

Aeroquip® Solstice™ 4247 Blue Thermoplastic Air Brake Tubing, 100 ft L, 300 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 4247-0416-0100
  • MPN: 4247-0416-0100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Solstice™ Air Brake Tubing, 4247 Series, 0.25 in OD, 0.17 in ID, 0.04 in Thick Wall, 100 ft Length, 300 psi, Thermoplastic, Blue, 1 in Bend Radius, -40 deg F Low, 200 deg F High

Product Type      :      Air Brake Hose and Tubing
Wall Thickness      :      0.04 in
Bend Radius      :      1 in
Series      :      4247
Outside Diameter      :      0.25 in
Inside Diameter      :      0.17 in
Length      :      100 ft
Material      :      Thermoplastic
Color      :      Blue
Pressure Rating      :      300 psi
  • Highly engineered thermoplastic material
  • Monowall tubing
  • UV stabilized
  • Thermoformable

Applications: Auxiliary air systems, formed and straight air brake harness assemblies, formed tubes, truck air brake systems, trailer air brake systems

  • pdfSpecification Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_4247-0410-0100_SS.pdf
