Flexfab® 5526-075X250
Send Print
  1. pin-int

Flexfab® 5526-075X250

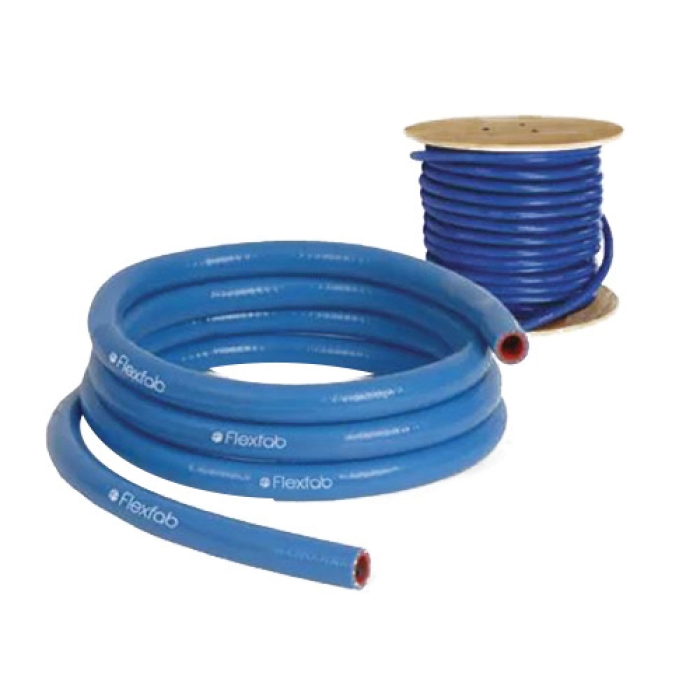

Flexfab® 5526 Silicone Standard Heater Hose, 3/4 in, 250 ft L

  • Manufacturers: Flexfab
  • Brand Name: Flexfab®
  • Tipco Part No: FFB 5526-075X250
  • MPN: 5526-075X250
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Flexfab® Standard Heater Hose, Series: 5526, Nominal Size: 3/4 in, 1.08 in OD, 3/4 in ID, 0.14/0.17 in Thick Wall, 250 ft Length, Silicone, Construction: 1-Ply of Nylon Fiber, Blue, Resistance Properties: Cool/Hot Temperature, Direct Sunlight, Oil, Ozone, -65 deg F Low, 350 deg F High

Product Type      :      Heater Hose
Material      :      Silicone
Construction      :      1-Ply of Nylon Fiber
Color      :      Blue
Resistance Properties      :      Cool/Hot Temperature, Direct Sunlight, Oil, Ozone
Temperature Low      :      -65 deg F
Series      :      5526
Temperature High      :      350 deg F
Nominal Size      :      3/4 in
Outside Diameter      :      1.08 in
Inside Diameter      :      3/4 in
Wall Thickness      :      0.14/0.17 in
Length      :      250 ft

Silicone heater hose is engineered with superior flexibility and durability, Flexfab's standard heater hose is resistant to coolant additives, as well as hardening, cracking, cold leaks and aging. Its extreme-duty cycle tested.

  • Extreme temperature resistance
  • Superior flexibility
  • Extreme duty cycle tested for hostile engine environments
  • Durable construction
  • Resistant to coolant additives
  • Working pressure is 1/3 of the burst pressure
  • Bend radius is 5X the ID of the hose

Standards/Certifications: SAE J20R3 Class A Certified

  • TMC RP303B Class I Grade II

    Applications: For extreme temperature and various pressure ranges where high performance levels are required
