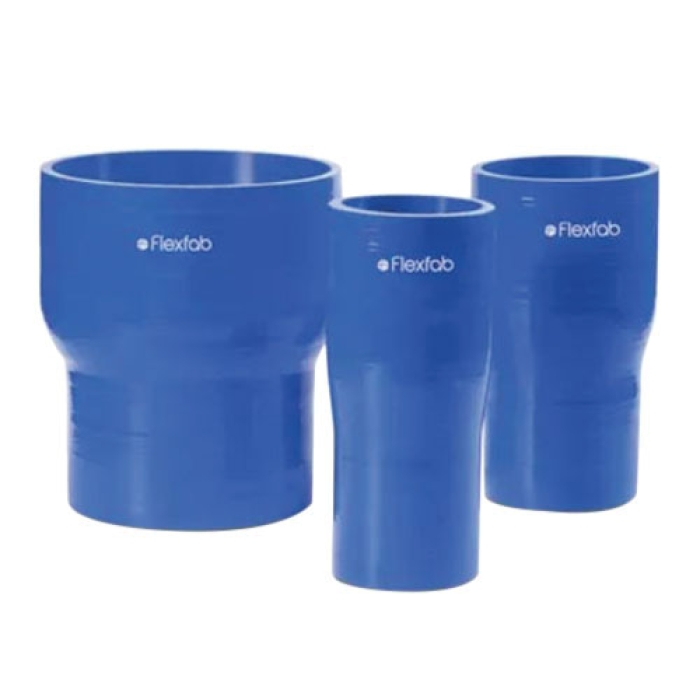

Flexfab® Reducer, Series: 7903, Nominal Size: 2-1/4, 3 in, Connection Type: Hose, 2.64, 3.39 in OD, 2-1/4, 3 in ID, 0.17, 0.22 in Thick Wall, 6 in Length, 100 psi, Silicone, Construction: 4-Ply Meta-Aramid, Resistance Properties: Cool/Hot Temperature, Direct Sunlight, Oil, Ozone, -65 deg F Low, 500 deg F High
| Product Type | : | Reducer |
| Pressure Rating | : | 100 psi |
| Material | : | Silicone |
| Construction | : | 4-Ply Meta-Aramid |
| Resistance Properties | : | Cool/Hot Temperature, Direct Sunlight, Oil, Ozone |
| Series | : | 7903 |
| Temperature Low | : | -65 deg F |
| Temperature High | : | 500 deg F |
| Nominal Size | : | 2-1/4, 3 in |
| Connection Type | : | Hose |
| Outside Diameter | : | 2.64, 3.39 in |
| Inside Diameter | : | 2-1/4, 3 in |
| Wall Thickness | : | 0.17, 0.22 in |
| Length | : | 6 in |
Silicone reducers have dual-purpose design for coolant and charge air connector systems and are constructed for extreme temperature and pressure resistance. They withstand oil, ozone and UV rays.
- Extreme temperature resistance
- Extreme duty cycle tested for hostile engine environments
- High-pressure resistance
- Engineered for coolant and charge air connector systems
- Resists hardening, cracking, cold leaks, aging and many chemicals
- Resists chemicals, steam, ozone, coolants and aging conditions normally found in the engine environment
Standards/Certifications: SAE J20 R1 Class A Certified
Applications: For extreme temperature and various pressure ranges where high performance levels are required
