Dixon® R515U100CBF/F

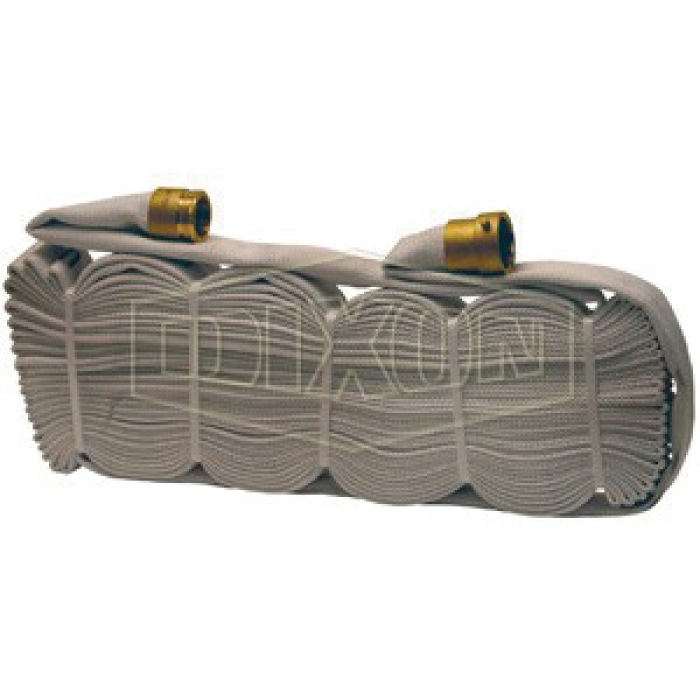

Dixon® R515U100CBF/F White Thermoplastic Folded Rack Hose, 1-1/2 in NST/NH, 100 ft L, 135 psi

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN R515U100CBF/F
  • MPN: R515U100CBF/F
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Folded Rack Hose, Nominal Size: 1-1/2 in, Connection Type: NST/NH, 1.50 in ID, 100 ft Length, 135 psi, Thermoplastic, Polyester Cover, Construction: Single-Jacket, All Polyester Outer, White

California residents see Prop 65 WARNINGS

Product Type      :      Rack Hose
Nominal Size      :      1-1/2 in
Connection Type      :      NST/NH
Inside Diameter      :      1.50 in
Length      :      100 ft
Pressure Rating      :      135 psi
Material      :      Thermoplastic
Cover Material      :      Polyester
Construction      :      Single-Jacket, All Polyester Outer
Color      :      White
  • Black, extruded EPDM rubber liner tube
  • Brass expansion ring
  • Coupled with female and male expansion ring couplings, pin lug

Applications: For pin rack service/emergency fire fighting only

Safety Notes:

  • Not to be used for washdown.
  • pdfSpecification Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_PW615B100RBF_SS.pdf
