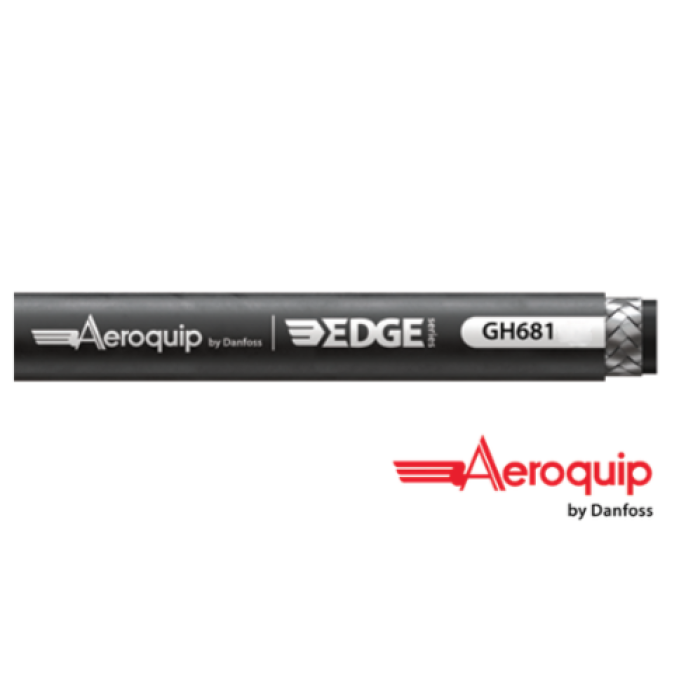

Aeroquip® EDGE® Global Braided Hydraulic Hose, GH681 Series, Nominal Size: 1-1/4 in, Dash Size: 20, 1.67 in OD, 1.25 in ID, 1 ft Length, 1000 psi, SAE Rating: SAE 100R1AT, Nitrile, PVC/Nitrile Blend Cover, Construction: 1-Ply Braid Wire, Black, 8.27 in Bend Radius, Resistance Properties: Abrasion, -50.8 deg F Low, 258.8 deg F High
| Product Type | : | Hydraulic Hose |
| SAE Rating | : | SAE 100R1AT |
| Material | : | Nitrile |
| Cover Material | : | PVC/Nitrile Blend |
| Construction | : | 1-Ply Braid Wire |
| Color | : | Black |
| Bend Radius | : | 8.27 |
| Length | : | 1 ft |
| Series | : | GH681 |
| Resistance Properties | : | Abrasion |
| Nominal Size | : | 1.25 in |
| Dash Size | : | 20 |
| Inside Diameter | : | 1.25 in |
| Outside Diameter | : | 1.67 in |
| Temperature Low | : | -50.8 deg F |
| Temperature High | : | 258.8 deg F |
| Pressure Rating | : | 1000 psi |
| Cover | : | DuraTUFF+™ Premier Abrasion |
Applications: Hydraulic systems with petroleum and water-glycol base fluids, for lubricating oils and water
Aeroquip by Danfoss | GH681 EDGE series fact sheet
