Aeroquip® by Danfoss EC881-6R250

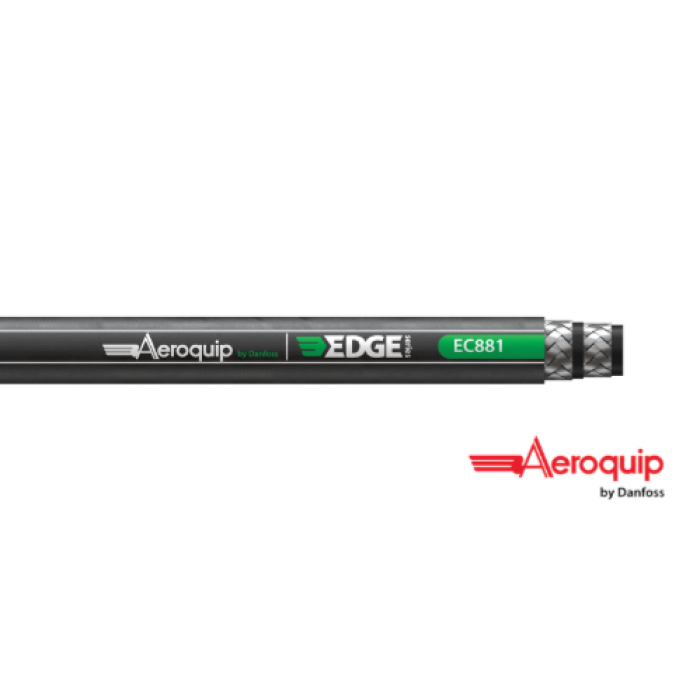

Aeroquip® EDGE ® by Danfoss Dynamax™ EC881 Series EC881-6R250 Hydraulic Hose, 0.38 in ID, 0.68 in OD, 10, 3000 in L, 5800 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip® by Danfoss
  • Tipco Part No: AER EC881-6R250
  • MPN: EC881-6R250
  • Min. Order Qty: 250
  • Qty. Interval: 250
  • Register to see Availability

The Aeroquip EC881 Dynamax hose is a high-performing, two wire EN857 2SC braided hose that outperforms the typical EN857 2SC 200,000 impulse cycle requirement by 5X. This hose is also has significantly higher temperature ratings, making it the perfect choice for industries such as agriculture, oil & gas, and mining. The EC881 Dynamax hose offers a range of benefits that can help you reduce costs, decrease downtime, and improve fuel efficiency, including up to 35% higher pressure ratings than standard hoses. With a qualification of 1 million impulse cycles, this hose is built to last, offering lower maintenance costs and higher safety for your operation.

Aeroquip® by Danfoss EDGE Dynamax™ Hydraulic Hose, SAE Rating: SAE 100R16, Nitrile, Synthetic Rubber Cover, 2-Wire Braided Construction, Black, 1.65 Bend Radius, 3000 Length, EC881 Series, Resistance Properties: Abrasion, 10 Dash, 0.38 Inside Diameter, 0.68 Outside Diameter, -50 Temperature Low, 260 Temperature High, 5800, 1.65 Minimum Bend Radius, 23200 Burst Pressure

SAE Rating      :      SAE 100R16
Material      :      Nitrile
Cover Material      :      Synthetic Rubber
Construction      :      2-Wire Braided
Color      :      Black
Bend Radius      :      1.65 in
Length      :      3000 in
Series      :      EC881 Series
Resistance Properties      :      Abrasion
Dash Size      :      10
Inside Diameter      :      0.38 in
Outside Diameter      :      0.68 in
Temperature Low      :      -50 deg F
Temperature High      :      260 deg F
Pressure Rating      :      5800 psi
Burst Pressure      :      23200 psi
Cover      :      DuraTUFF+™ Premier abrasion
Minimum Bend Radius      :      1.65 in
  • Qualified for 1 million impulse cycles?
  • Exceeds EN857 Type 1SC standard by 5X, designed to last and withstand tough applications?
  • Up to 35% higher pressure ratings than standard hoses, suitable for high-pressure applications?
  • Better suited for a broader range of hydraulic systems, potentially saving costs in build?
  • 50% better bending radius than standard hoses, improving design flexibility?
  • 8 times enhanced abrasion resistance with Dura-Tuff cover, reducing maintenance costs?
  • Higher operating temperature of +126 deg C (260 deg F) than standard two wire braided hose
  • Lower maintenance costs and higher safety due to the ability to withstand tough applications
  • Cost savings in build due to the hose's suitability for a broader range of hydraulic systems
  • Decreased weight of machines and improved routing due to improved design flexibility
  • Reduced maintenance costs due to enhanced abrasion resistance
  • More versatile use in hydraulic systems, reducing design and usage complexity and potentially saving costs in build.
