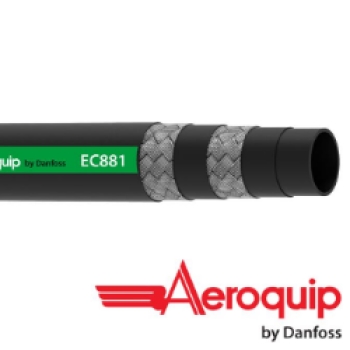

Aeroquip® Dynamax® EC881 Black Nitrile Million Impulse Cycle Braided Hydraulic Hose, Nominal Size: 3/4 in, Dash Size: 12, Inside Diameter: 0.75 in, Outside Diameter: 1.10 in, Temperature Low: -50.0 deg F, Temperature High: 260.0 deg F, Pressure Rating: 4785 psi, Cover Material: Dura-Tuff Synthetic Rubber, Bend Radius: 3.15 in, Sold by the foot, reel length is approximately 250 ft.
An impressive alternative to heavy, rigid 4-spiral hose, EC881 Dynamax hose is a 2-wire braided hose that is qualified to an outstanding 1 million impulse cycles. This tough, abrasion-resistant hose provides a lighter weight, flexible option for high pressure applications normally dependent upon 4-spiral hose. It outperforms standard EN857 2SC in pressure rating, operating temperature, impulse life and abrasions resistance.
| Product Type | : | Hydraulic Hose |
| SAE Rating | : | EN 857 2SC |
| Material | : | Nitrile |
| Cover Material | : | Dura-Tuff Synthetic Rubber |
| Construction | : | 2-Ply Braided Wire |
| Color | : | Black |
| Bend Radius | : | 3.15 in |
| Length | : | 1 ft |
| Series | : | EC881 |
| Resistance Properties | : | Abrasion |
| Nominal Size | : | 3/4 in |
| Dash Size | : | 12 |
| Inside Diameter | : | 0.75 in |
| Outside Diameter | : | 1.10 in |
| Temperature Low | : | -50.0 deg F |
| Temperature High | : | 260.0 deg F |
| Pressure Rating | : | 4785 psi |
Danfoss is proud to introduce the Aeroquip® Dynamax® EC881 hose, the new high performing, two wire EN857 2SC braided hose, qualified to 1 Million impulse cycles. The Dynamax EC881 hose outperforms the typical EN857 2SC 200,000 impulse cycle requirement by 5X, in addition to providing a range of other benefits such as: lighter weight, higher abrasion resistance, and higher pressure & temperature ratings
