Aeroquip® EC215-12LRL

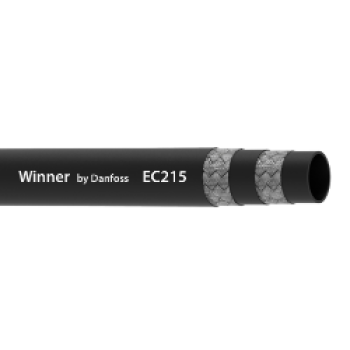

Aeroquip® EC215 Black Synthetic Rubber 2-Wire Braided Hose, 3/4 in, 350 ft L, 3125 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER EC215-12LRL
  • MPN: EC215-12LRL
  • UPC: 678146167712
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 2-Wire Braided Hose, EC215 Series, Nominal Size: 3/4 in, Dash Size: 12, 1.13 in OD, 0.75 in ID, 350 ft Length, 3125 psi, SAE Rating: SAE 100R16 / EN 857 2SC, Synthetic Rubber, Synthetic Rubber Cover, Construction: 2-Ply Braid Wire, Black, 4.72 in Bend Radius, Resistance Properties: Premium Abrasion, -40 deg F Low, 212 deg F High

Product Type      :      Braided Hose
Series      :      EC215
Nominal Size      :      3/4 in
Dash Size      :      12
Inside Diameter      :      0.75 in
Outside Diameter      :      1.13 in
Temperature Low      :      -40 deg F
Temperature High      :      212 deg F
Pressure Rating      :      3125 psi
SAE Rating      :      SAE 100R16 / EN 857 2SC
Material      :      Synthetic Rubber
Cover Material      :      Synthetic Rubber
Construction      :      2-Ply Braid Wire
Color      :      Black
Bend Radius      :      4.72 in
Length      :      350 ft
Resistance Properties      :      Premium Abrasion

Applications: For hydraulic system service with petroleum and water-based fluids, general industrial service
