Aeroquip® EC230-40

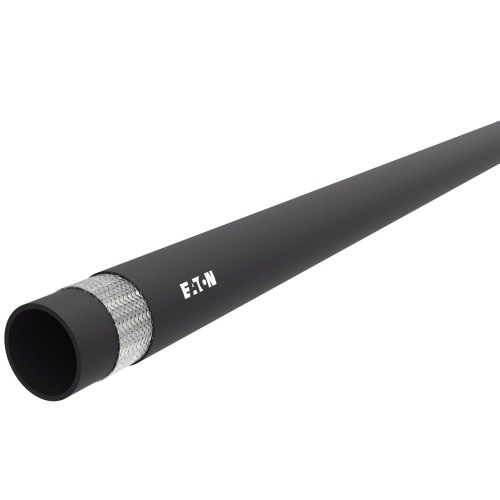

Aeroquip®EC230 Black Synthetic Rubber Braided Hydraulic Hose, 2-1/2 in, 12 in L, 1150 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER EC230-40
  • MPN: EC230-40
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

X-FLEX Braided Hydraulic Hose, EC230 Series, Nominal Size: 2-1/2 in, Dash Size: 40, 3.16 in OD, 2.50 in ID, 0.33 in Thick Wall, 12 in Length, 1150 psi, SAE Rating: SAE 100R2AT / EN857 2SC, Synthetic Rubber, Synthetic Rubber Cover, Construction: 2-Ply Wire Braid, Black, 26 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 212 deg F High

Product Type      :      Hydraulic Hose
SAE Rating      :      SAE 100R2AT / EN857 2SC
Wall Thickness      :      0.33 in
Material      :      Synthetic Rubber
Cover Material      :      Synthetic Rubber
Construction      :      2-Ply Wire Braid
Color      :      Black
Bend Radius      :      26 in
Length      :      12 in
Series      :      EC230
Resistance Properties      :      Abrasion
Nominal Size      :      2-1/2 in
Dash Size      :      40
Inside Diameter      :      2.50 in
Outside Diameter      :      3.16 in
Temperature Low      :      -40 deg F
Temperature High      :      212 deg F
Pressure Rating      :      1150 psi

Applications: For general industrial service
