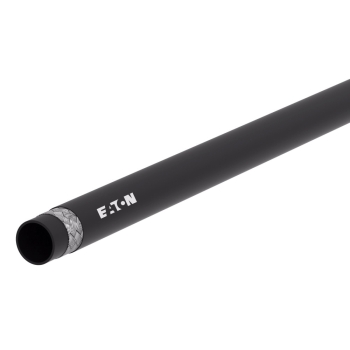

Aeroquip® Braided Hydraulic Hose, FC613 Series, Nominal Size: 3/4 in, Dash Size: 12, 1.127 in OD, 0.75 in ID, 0.1885 in Thick Wall, 12 in Length, 1250 psi, SAE Rating: SAE 100R1, Synthetic Rubber, Synthetic Rubber Cover, Construction: 1-Ply Wire Braid, Red, 9-1/2 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 212 deg F High
| Product Type | : | Hydraulic Hose |
| SAE Rating | : | SAE 100R1 |
| Wall Thickness | : | 0.1885 in |
| Material | : | Synthetic Rubber |
| Cover Material | : | Synthetic Rubber |
| Construction | : | 1-Ply Wire Braid |
| Color | : | Red |
| Bend Radius | : | 9-1/2 in |
| Length | : | 12 in |
| Series | : | FC613 |
| Resistance Properties | : | Abrasion |
| Nominal Size | : | 3/4 in |
| Dash Size | : | 12 |
| Inside Diameter | : | 0.75 in |
| Outside Diameter | : | 1.127 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 212 deg F |
| Pressure Rating | : | 1250 psi |
Danfoss's FC613 fire suppression hose is manufactured with a highly visible red colored cover for use on fire suppression systems. The MSHA approved cover and construction allows easy identification of the hose and can be used in applications currently serviced by 100R1AT style products when safety and protection are a concern.
Applications: For hydraulics, gasoline, air, crude fuel and lubricating oils, mobile vehicles equipped with fire suppression systems to protect operators and designed to reduce downtime
