Aeroquip® FC735-12RL

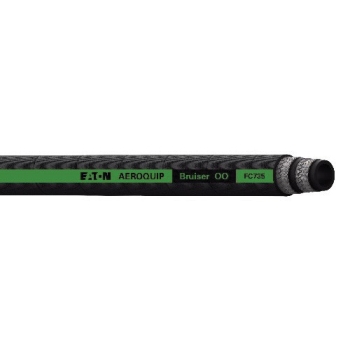

Aeroquip® FC735 Black Synthetic Rubber Braided Hydraulic Hose, #12, 1 ft L, 3485 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC735-12RL
  • MPN: FC735-12RL
  • UPC: 678146076045
  • Min. Order Qty: 200
  • Qty. Interval: 200
  • Register to see Availability

Aeroquip® Hydraulic Hose, FC735 Series, Nominal Size: 3/4 in, 1.14 in OD, 0.75 in ID, 0.195 in Thick Wall, 1 ft Length, 3485 psi, SAE Rating: SAE 100R16 / EN 857 2SC, Synthetic Rubber, Bruiser Cover, Construction: 2-Wire Braided, Black, 4-3/4 in Bend Radius, Resistance Properties: Premium Abrasion, -40 deg F Low, 259 deg F High

Product Type      :      Hydraulic Hose
Series      :      FC735
Nominal Size      :      3/4 in
Inside Diameter      :      0.75 in
Outside Diameter      :      1.14 in
Temperature Low      :      -40 deg F
Temperature High      :      259 deg F
Pressure Rating      :      3485 psi
SAE Rating      :      SAE 100R16 / EN 857 2SC
Wall Thickness      :      0.195 in
Material      :      Synthetic Rubber
Cover Material      :      Bruiser
Construction      :      2-Wire Braided
Color      :      Black
Bend Radius      :      4-3/4 in
Length      :      1 ft
Resistance Properties      :      Premium Abrasion

Applications: For high-pressure hydraulics subjected to high surge peaks
