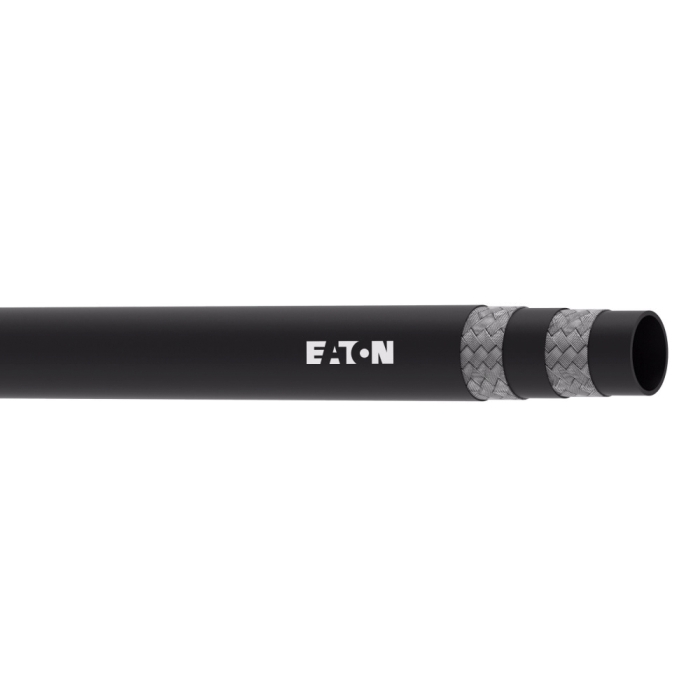

Aeroquip® 2-Wire Braided Hose, Series: GH793, Nominal Size: 1/2 in, Dash Size: 08, 1/2 in ID, 0.87 in OD, -40 deg F Low, 260 deg F High, 3500 psi, SAE Rating: SAE 100R2AT/EN853 2SN, 0.185 in Thick Wall, Synthetic Rubber, PVC/Nitrile Blend Cover, Construction: 2-Wire Braided, Black, 7 in Bend Radius, Resistance Properties: Abrasion, 500 ft Length
| Product Type | : | Braided Hose |
| SAE Rating | : | SAE 100R2AT/EN853 2SN |
| Wall Thickness | : | 0.185 in |
| Material | : | Synthetic Rubber |
| Cover Material | : | PVC/Nitrile Blend |
| Construction | : | 2-Wire Braided |
| Color | : | Black |
| Bend Radius | : | 7 in |
| Length | : | 500 ft |
| Series | : | GH793 |
| Resistance Properties | : | Abrasion |
| Nominal Size | : | 1/2 in |
| Dash Size | : | 08 |
| Inside Diameter | : | 1/2 in |
| Outside Diameter | : | 0.87 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 260 deg F |
| Pressure Rating | : | 3500 psi |
- Dura-Tuff™ cover provides much higher abrasion-resistant leading to longer hose life
- Danfoss's MatchMate™ program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
Standards/Certifications: ABS Approved
Applications: For hydraulic system service with petroleum and water-based fluids, general industrial service
Warranty: 1 Year
