Gates® 16RFSXREEL

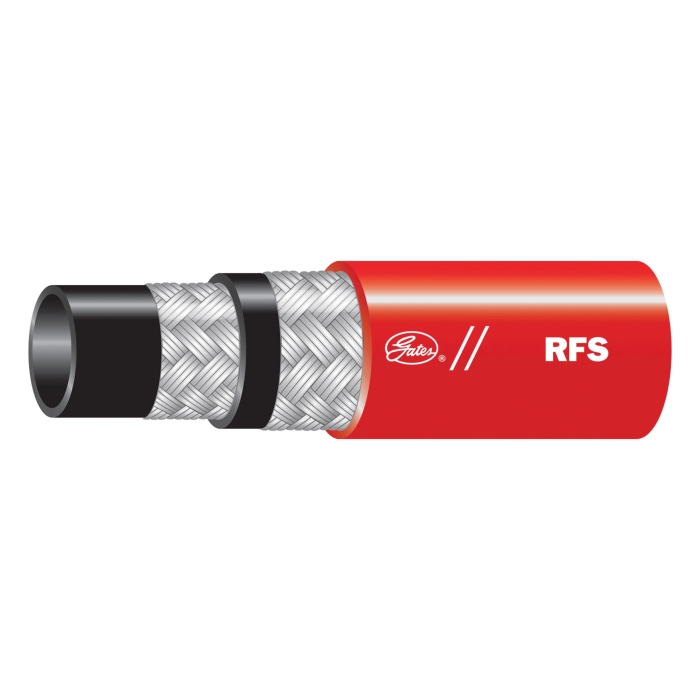

Gates® 16RFSXREEL Fire Suppressant Hydraulic Hose, 1 in, 1 in ID, 1.41 in OD, 165 ft L, 1000 psi, Synthetic Rubber
- Manufacturers: Gates Corp
- Brand Name: Gates®
- Tipco Part No: GAT 16RFS
- MPN: 16RFSXREEL
- UPC: 072053983869
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Recommended for low pressure powder fire suppressant applications in mining, forestry and firefighting equipment. The red cover is for easy visual identification in these applications. Meets performance requirements of SAE 100R1. Meets flame-resistance acceptance designation MSHA 2G and Fire-Retardant anti-static designation FRAS.
Gates® Fire Suppressant Hydraulic Hose, Synthetic Rubber, Nitrile Cover, 1-Braid Steel Wire Construction, Black/Red, 12 in Bend Radius, 165 ft Length, Resistance Properties: Abrasion, Oil, For Use With: MegaCrimp® Couplings, 1 in Nominal, 1 in Inside Diameter, 1.41 in Outside Diameter, Temperature Low: -40 deg F, Temperature High: 212 deg F, 1000 psi, 4000 psi Burst
| Product Type | : | Fire Suppressant Hydraulic Hose |
| Material | : | Synthetic Rubber |
| Cover Material | : | Nitrile |
| Construction | : | 1-Braid Steel Wire |
| Color | : | Black/Red |
| Bend Radius | : | 12 in |
| Length | : | 165 ft |
| Resistance Properties | : | Abrasion, Oil |
| For Use With | : | MegaCrimp® Couplings |
| Nominal Size | : | 1 in |
| Inside Diameter | : | 1 in |
| Outside Diameter | : | 1.41 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 212 deg F |
| Pressure Rating | : | 1000 psi |
| Burst Pressure | : | 4000 psi |
- Reinforcement - one-braid of high-tensile steel wire
