Gates® 46574121

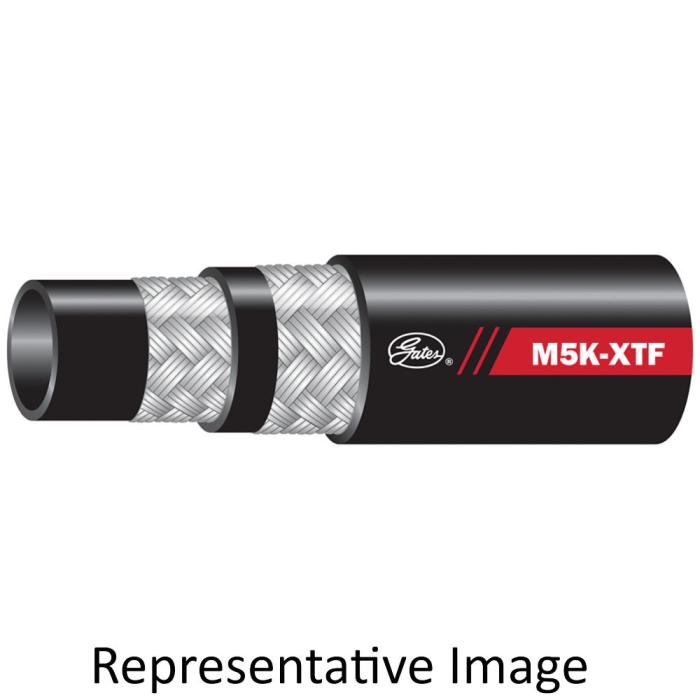

Gates® 46574121 High-Pressure Hydraulic Hose, 3/8 in ID, 0.7 in OD, 06, 15 m L, 5000 psi, Nitrile, Black

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 6M5KX50
  • MPN: 46574121
  • UPC: 770075323808
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Recommended for high-pressure hydraulic applications. Easy-to-route and to install in extremely tight areas. Meets or exceeds requirements of EN 857 2SC and ISO 18752 Grade B. Recommended Couplings: GlobalSpiral™ couplings, MegaCrimp® couplings, Stainless Steel B Couplings (-4, -6, -8).

Gates® High-Pressure Hydraulic Hose, Nitrile, Nitrile/PVC Cover, 2-Braid Wire Construction, Black, 2-1/2 in Bend Radius, 15 m Length, Resistance Properties: Flame, Ozone, Weather, For Use With: GlobalSpiral™ G20 Series, MegaCrimp® G25 Series, G17 Series Stainless Steel Braid Couplings, 06 Dash, 3/8 in Inside Diameter, 0.7 in Outside Diameter, Temperature Low: -40 deg F, Temperature High: 212 deg F, 5000 psi, 2-1/2 in Minimum Bend Radius, 20000 psi Burst

Product Type      :      High-Pressure Hydraulic Hose
Material      :      Nitrile
Cover Material      :      Nitrile/PVC
Construction      :      2-Braid Wire
Color      :      Black
Bend Radius      :      2-1/2 in
Length      :      15 m
Resistance Properties      :      Flame, Ozone, Weather
For Use With      :      GlobalSpiral™ G20 Series, MegaCrimp® G25 Series, G17 Series Stainless Steel Braid Couplings
Dash Size      :      06
Inside Diameter      :      3/8 in
Outside Diameter      :      0.7 in
Temperature Low      :      -40 deg F
Temperature High      :      212 deg F
Pressure Rating      :      5000 psi
Burst Pressure      :      20000 psi
Minimum Bend Radius      :      2-1/2 in
  • The optional MegaTuff® cover lasts up to 300 times longer than standard hose during hose to hose and hose to metal abrasion tests per ISO 6945 and offers superior ozone and weather-resistance
  • The optional XtraTuff™ cover lasts up to 25 times longer than standard hose
  • For use with GlobalSpiral™ couplings (G20 Series), MegaCrimp® couplings (G25 Series) and stainless steel braid couplings (G17 Series)
  • Tested to 600000 impulse cycles, 3X the industry-standard
  • Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
  • M5K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Meets flame-resistance acceptance designation MSHA 2G
