Gates® 70545

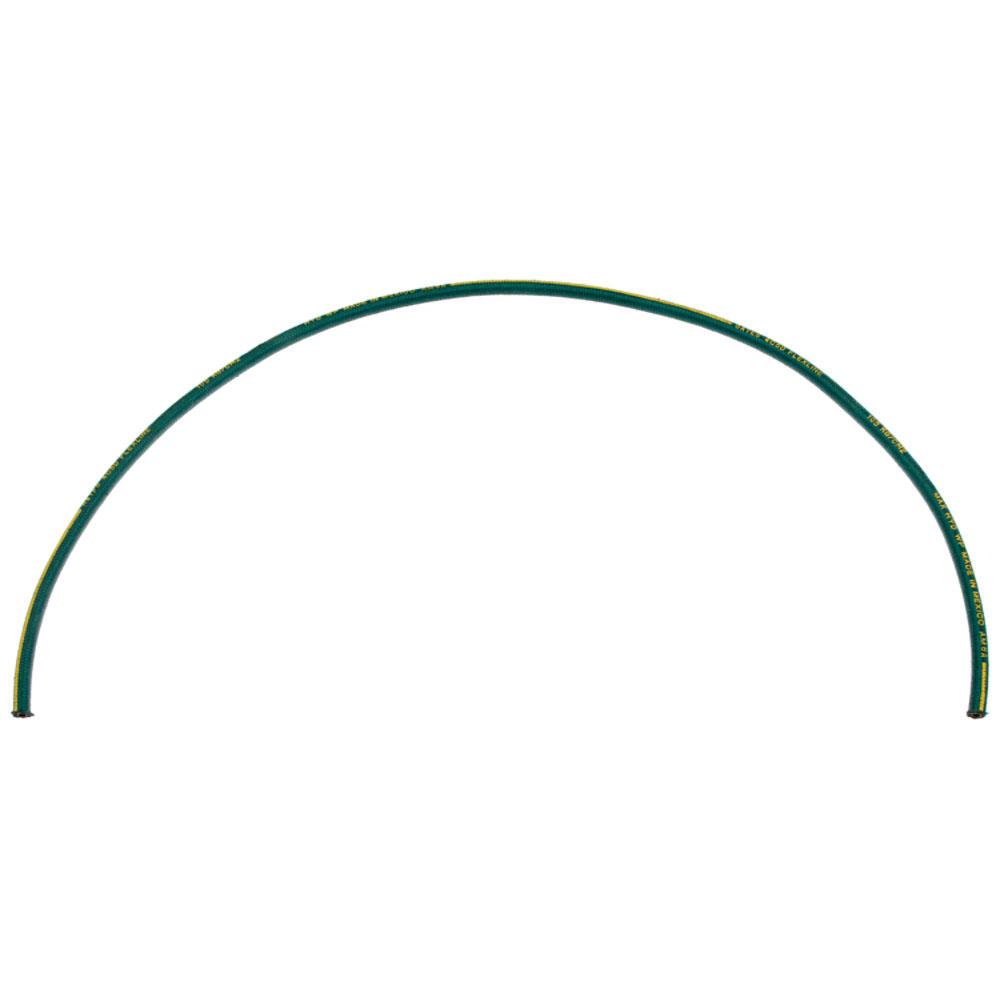

Gates® C5D Series 70545 Hydraulic Hose, 5/8 in ID, 1.08 in OD, 3000 psi

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 12C5D
  • MPN: 70545
  • UPC: 072053227789
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Recommended for petroleum base or phosphate-ester fluids, diesel fuels and filtration lines, transmission coolant lines, hot lube oil lines, power steering, gasoline and turbocharger oil supplies. Tilt cab cylinder and air brakes. Not approved for bio-diesel. C5D (-4 to -12) meets or exceeds DOT FMVSS 106-74 Type All, SAE J1402 Type All and SAE J1405 and fuel resistance of SAE J30R2.

Gates® Hydraulic Hose, Synthetic Rubber Cover, 2.3 in Bend Radius, C5D Series, Resistance Properties: Mildew, Oil, For Use With: C5 Field Attachable Couplings (G34) Section K, C5X Field Attachable Couplings (-5, -8 and -12) (G34) Section K, 12 Dash, 5/8 in Inside Diameter, 1.08 in Outside Diameter, Temperature Low: -40 deg F, Temperature High: 300 deg F, 3000 psi

Product Type      :      Hydraulic Hose
Cover Material      :      Synthetic Rubber
Bend Radius      :      2.3 in
Series      :      C5D Series
Resistance Properties      :      Mildew, Oil
For Use With      :      C5 Field Attachable Couplings (G34) Section K, C5X Field Attachable Couplings (-5, -8 and -12) (G34) Section K
Dash Size      :      12
Inside Diameter      :      5/8 in
Outside Diameter      :      1.08 in
Temperature Low      :      -40 deg F
Temperature High      :      300 deg F
Pressure Rating      :      3000 psi
  • Green for easy identification, oil and mildew-resistant, polyester braid impregnated with synthetic rubber cover
