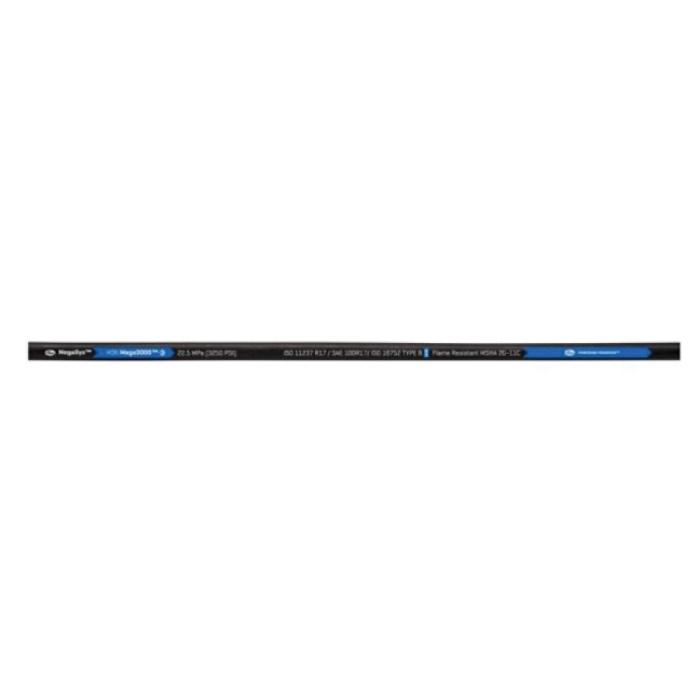

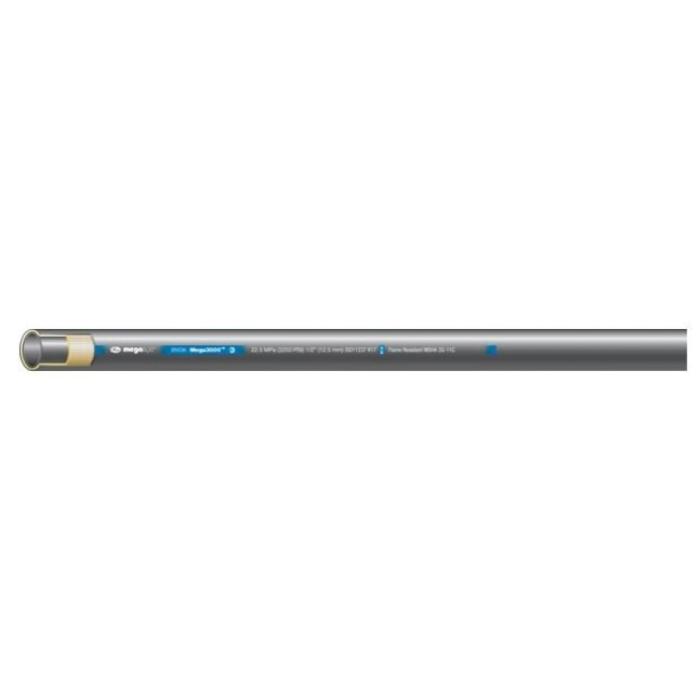

Gates® Braided Hydraulic Hose, Nitrile/PVC Cover, Black, 2.8 in Bend Radius, M3K Series, Resistance Properties: Abrasion, Oil, Weather, 1/2 in Nominal, 08 Dash, 1/2 in Inside Diameter, 0.8 in Outside Diameter, Temperature Low: -40 deg F, Temperature High: 212 deg F, 3250 psi
| Product Type | : | Braided Hydraulic Hose |
| Cover Material | : | Nitrile/PVC |
| Color | : | Black |
| Bend Radius | : | 2.8 in |
| Series | : | M3K Series |
| Resistance Properties | : | Abrasion, Oil, Weather |
| Nominal Size | : | 1/2 in |
| Dash Size | : | 08 |
| Inside Diameter | : | 1/2 in |
| Outside Diameter | : | 0.8 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 212 deg F |
| Pressure Rating | : | 3250 psi |
- Easy to route and to install in extremely tight areas
- M3K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
- Superior flex impulse performance tested to 600,000 impulse cycles, 3X the industry standard
- Meets flame-resistant acceptance designation MSHA 2G
- 70% of EN 857 1SC/2SC and 50% of EN 853 1SN/2SN bend radius at rated working pressure
- Mega3000 rated at 3250 psi working pressure and 13000 burst for all ID's
- Exceeds working pressure requirements of R17
- Validated with MegaCrimp®
- Black, oil, abrasion and weather-resistant, synthetic rubber (nitrile/PVC - Type C2) with color-coded lay line cover
Specification Sheet
