Gates® 70489

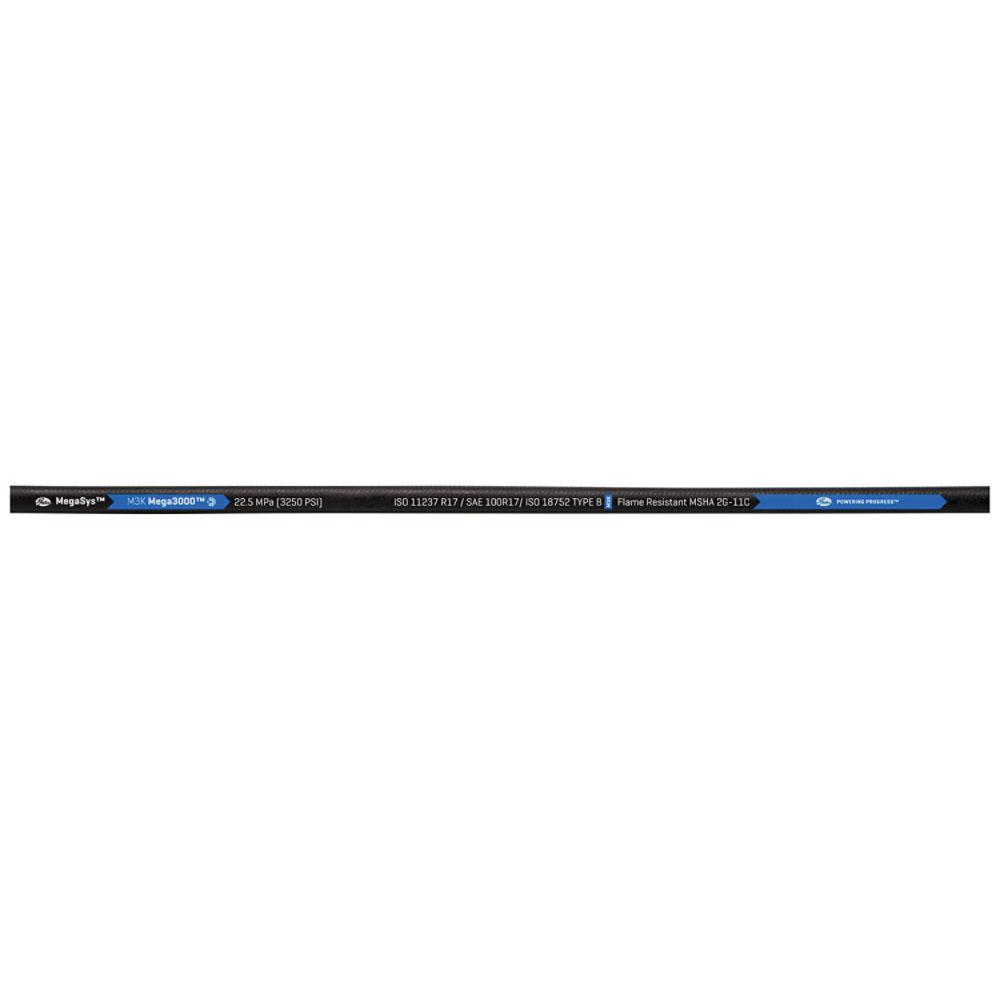

Gates® M3K Series 70489 Hydraulic Hose, 3/4 in ID, 1.15 in OD, 3250 psi

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 12M3K
  • MPN: 70489
  • UPC: 072053318593
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in extremely tight areas. Exceeds ISO 18752 Grade B, SAE 100R17 and ISO11237 R17 working pressure, minimum bend radius requirements and performance requirements of EN 857 1SC. Recommended couplings GB couplings (-4 to -16), MegaCrimp® couplings (-4 to -16), GlobalSpiral™ couplings (-6 through -16), Power Crimp® couplings (-3), stainless steel B couplings.

Gates® Hydraulic Hose, Nitrile/PVC Cover, 3.8 in Bend Radius, M3K Series, Resistance Properties: Flame, For Use With: GlobalSpiral™ Couplings (-6 through -16) (G20) Section E, MegaCrimp® Couplings (G25) Section G, Power Crimp® Couplings (-3) Section I and Stainless Steel Braid Couplings (G17) Section H, 12 Dash, 3/4 in Inside Diameter, 1.15 in Outside Diameter, Temperature Low: -40 deg F, Temperature High: 212 deg F, 3250 psi

Product Type      :      Hydraulic Hose
Cover Material      :      Nitrile/PVC
Bend Radius      :      3.8 in
Series      :      M3K Series
Resistance Properties      :      Flame
For Use With      :      GlobalSpiral™ Couplings (-6 through -16) (G20) Section E, MegaCrimp® Couplings (G25) Section G, Power Crimp® Couplings (-3) Section I and Stainless Steel Braid Couplings (G17) Section H
Dash Size      :      12
Inside Diameter      :      3/4 in
Outside Diameter      :      1.15 in
Temperature Low      :      -40 deg F
Temperature High      :      212 deg F
Pressure Rating      :      3250 psi
  • M3K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance, tested to 600,000 impulse cycles, 3X the industry standard
  • Meets flame-resistant acceptance designation MSHA 2G
  • 70% of EN 857 1SC/2SC and 50% of EN 853 1SN/2SN bend radius at rated working pressure
  • Mega3000 rated at 3250 psi working pressure and 13,000 burst for all ID's
  • Exceeds working pressure requirements of R17
  • Validated with MegaCrimp®
  • Working pressure: 22.5 MPa
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Gates_10M3KXLG_REEL_Specification_Sheet.pdf
