Gates® 46578851

Choose the Gates PRO Series CR2 Hydraulic Hose for dependable medium pressure hydraulic performance. Its robust two-wire braid design and MSHA approved cover ensure safety and durability, making it a smart investment for industrial hydraulic systems. Compatible with multiple coupling options, it delivers versatility and reliability for your applications.

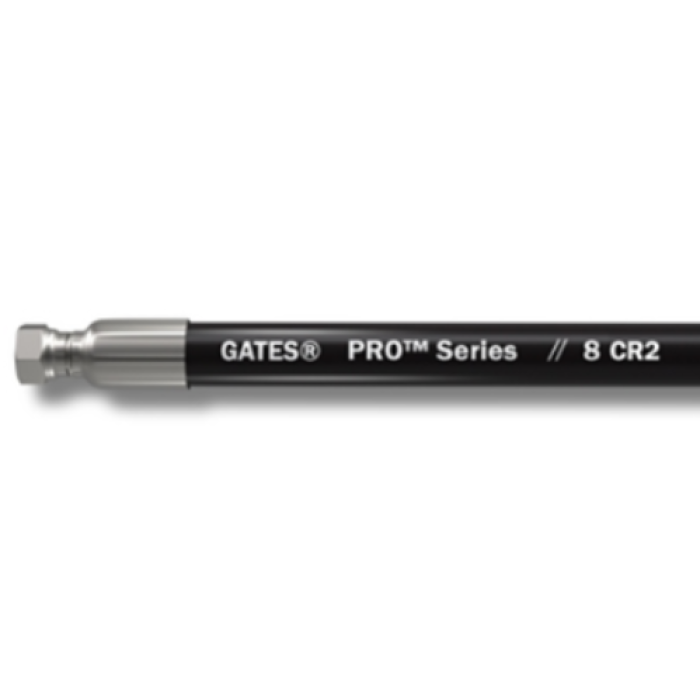

The Gates PRO Series CR2 Hydraulic Hose is a professional-grade, two-wire braid hose designed for medium pressure hydraulic applications requiring reliable performance and durability. Engineered to meet SAE 100R2 and EN 853 2SN specifications, this hose is ideal for high-pressure hydraulics with low flexure or non-severe applications. It features a nitrile tube compatible with hydraulic fluids, phosphate esters, and water glycol, and a modified SBR cover that is MSHA approved for enhanced safety. The hose withstands a maximum working pressure of 3125 psi and a minimum burst pressure of 12500 psi, with a continuous operating temperature range from -40°F to +212°F. Its 0.75 inch (19.1 mm) inside diameter and 1.14 inch (29 mm) outside diameter provide optimal flow capacity, while the minimum bend radius of 9.5 inches (241.3 mm) allows for flexible installation. Qualified with Gates PRO Series and MegaCrimp Couplings, it ensures compatibility with recommended PCK, MegaCrimp, and GB couplings. This hose is supplied in a 67 meter length, making it suitable for various industrial hydraulic systems requiring dependable fluid conveyance.

• Maximum Working Pressure: 3125 psi
• Minimum Burst Pressure: 12500 psi
• Inside Diameter: 0.75 in (19.1 mm)
• Outside Diameter: 1.14 in (29 mm)
• Length: 67 m
• Minimum Bend Radius: 9.5 in (241.3 mm)
• Tube Material: Nitrile - Type C
• Cover Material: Modified SBR, MSHA approved
• Reinforcement: 2-wire braid
• Operating Temperature Range: -40°F to +212°F

• GATES Catalog https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/fp-hydraulics-pro-series-cr2-global-sell-sheet-en.pdf
