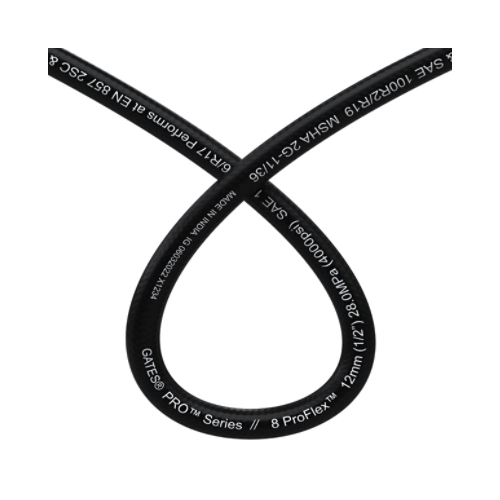

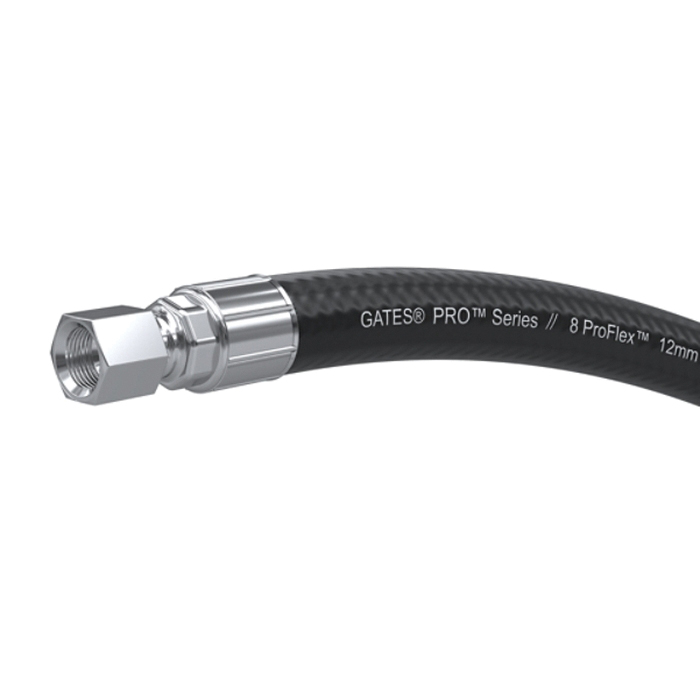

ProFlex is variable pressure hose that meets SAE 100R16 and EN 2SC, while being lighter weight and more flexible. We have used our extensive knowledge of standards, industries and applications, as well as our expertise in materials science to create a competitive edge for our customers by developing application specific solutions that offer reliable performance.
Gates® Hydraulic Hose, Series: PRO™ Series, Hydraulic Hose, #6 Dash Size, 3/8 in Inside Dia, 0.65 in Outside Dia, 400 ft Length, Synthetic Rubber Tube, Synthetic Rubber Cover, 2-Wire Braided, High-Tensile Steel Reinforcement, Black Hose Color, 2-1/2 in Bend Radius, 4800 psi, 212 deg F Temperature High, -40 deg F Temperature Low
| Cover Material | : | Synthetic Rubber |
| Bend Radius | : | 2-1/2 in |
| Length | : | 400 ft |
| Series | : | PRO™ Series |
| Dash Size | : | #6 |
| Inside Diameter | : | 3/8 in |
| Outside Diameter | : | 0.65 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 212 deg F |
| Pressure Rating | : | 4800 psi |
- Compact construction with lower force to bend for faster and more ergonomic installation.
- Meets or exceeds the performance requirements of SAE 100R2 / EN 857 2SC / EN 853 2SN. Satisfies SAE 100R16 / SAE 100R17 dimensions and performance cycles (excluding 1", -16, DN25).
- Qualified for 200,000 impulse cycles with MegaCrimp™ couplings.
Specification Sheet
