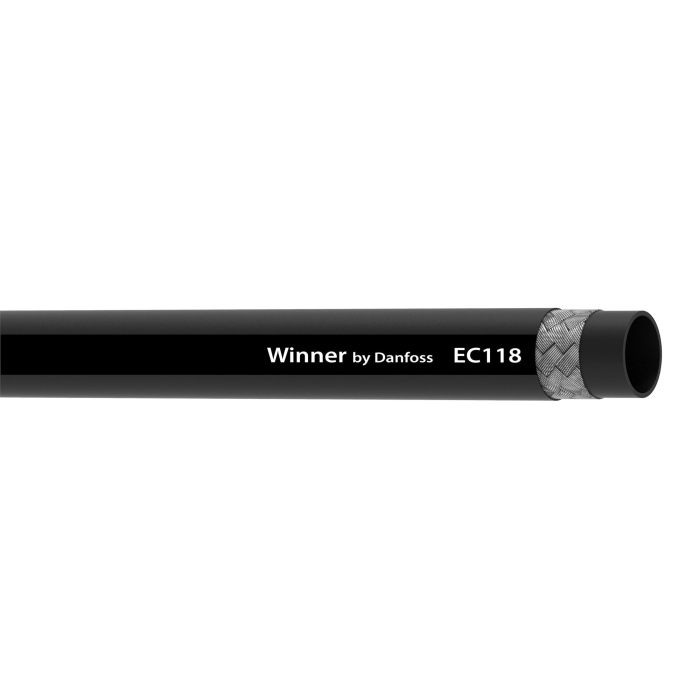

Winner by Danfoss EC118-04LRL
Winner by Danfoss EC118 Series EC118-04LRL Braided Hydraulic Hose, 1/4 in, 1/4 in ID, 0.48 in OD, 04, 11808 in L, Black
- Manufacturers: Danfoss
- Brand Name: Winner by Danfoss
- Tipco Part No: AER EC118-04LRL
- MPN: EC118-04LRL
- UPC: 678146192943
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Winner by Danfoss Braided Hydraulic Hose, Nitrile, Rubber Cover, 1-Wire Braided Construction, Black, 1.97 Bend Radius, 11808 Length, EC118 Series, Resistance Properties: Abrasion, 1/4 Nominal, 04 Dash, 1/4 Inside Diameter, 0.48 Outside Diameter, -40 Temperature Low, 212 Temperature High, 3050, 1.97 Minimum Bend Radius, 12200 Burst Pressure
| Material | : | Nitrile |
| Cover Material | : | Rubber |
| Construction | : | 1-Wire Braided |
| Color | : | Black |
| Bend Radius | : | 1.97 in |
| Length | : | 11808 in |
| Series | : | EC118 Series |
| Resistance Properties | : | Abrasion |
| Nominal Size | : | 1/4 in |
| Dash Size | : | 04 |
| Inside Diameter | : | 1/4 in |
| Outside Diameter | : | 0.48 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 212 deg F |
| Pressure Rating | : | 3050 psi |
| Burst Pressure | : | 12200 psi |
| Minimum Bend Radius | : | 1.97 in |
- White ink transfer lay line
