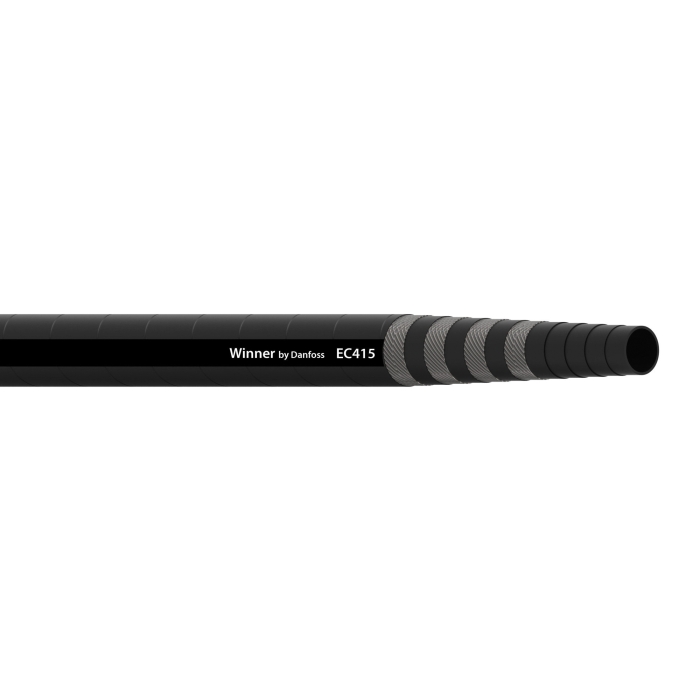

Winner by Danfoss EC415-32L
Winner by Danfoss EC415 Series EC415-32L Hydraulic Spiral Hose, 2 in, 2 in ID, 2.55 in OD, 32, 400 ft L, 2550 psi, Black
- Manufacturers: Danfoss
- Brand Name: Winner by Danfoss
- Tipco Part No: AER EC415-32L
- MPN: EC415-32L
- UPC: 678146170675
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Winner by Danfoss Hydraulic Spiral Hose, 0.63 Wall Thickness, Rubber, Rubber Cover, 4-Wire Spiral Construction, Black, 24.8 Bend Radius, 400 Length, EC415 Series, Resistance Properties: Abrasion, 2 Nominal, 32 Dash, 2 Inside Diameter, 2.55 Outside Diameter, -40 Temperature Low, 250 Temperature High, 2550, 12.6 Minimum Bend Radius, 12000 Burst Pressure
| Wall Thickness | : | 0.63 in |
| Material | : | Rubber |
| Cover Material | : | Rubber |
| Construction | : | 4-Wire Spiral |
| Color | : | Black |
| Bend Radius | : | 24.8 in |
| Length | : | 400 ft |
| Series | : | EC415 Series |
| Resistance Properties | : | Abrasion |
| Nominal Size | : | 2 in |
| Dash Size | : | 32 |
| Inside Diameter | : | 2 in |
| Outside Diameter | : | 2.55 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 250 deg F |
| Pressure Rating | : | 2550 psi |
| Burst Pressure | : | 12000 psi |
| Minimum Bend Radius | : | 12.6 in |
