Aeroquip® GH195-10RL AER GH195-10RL | Tipco Technologies

Aeroquip® GH195-10RL

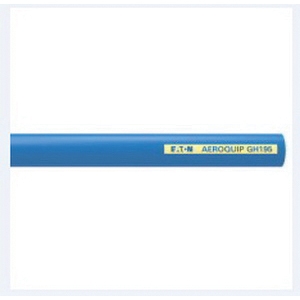

Aeroquip® AQP™ Hi-Impulse® MatchMate Blue™ GH195 Blue AQP Elastomer Braided Hydraulic Hose, 1 ft L, 3650 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER GH195-10RL
  • MPN: GH195-10RL
  • Min. Order Qty: 240
  • Qty. Interval: 240
  • Register to see Availability

Aeroquip® AQP™ Hi-Impulse® MatchMate Blue™ Braided Hydraulic Hose, GH195 Series, Dash Size: 10, 1.03 in OD, 0.62 in ID, 0.18 in Thick Wall, 1 ft Length, 3650 psi, SAE Rating: SAE 100R16 / EN 857 2SC, AQP Elastomer, Elastomer Cover, Construction: 1-Ply Wire Braid, Blue, 7.99 in Bend Radius, Resistance Properties: Fire, Standard Abrasion, -40 deg F Low, 300 deg F High

Product Type      :      Hydraulic Hose
Series      :      GH195
Dash Size      :      10
Inside Diameter      :      0.62 in
Outside Diameter      :      1.03 in
Temperature Low      :      -40 deg F
Temperature High      :      300 deg F
Pressure Rating      :      3650 psi
SAE Rating      :      SAE 100R16 / EN 857 2SC
Material      :      AQP Elastomer
Cover Material      :      Elastomer
Construction      :      1-Ply Wire Braid
Length      :      1 ft
Color      :      Blue
Wall Thickness      :      0.18 in
Bend Radius      :      7.99 in
Resistance Properties      :      Fire, Standard Abrasion

Applications: Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids
