Gates® 12G2XH X50FT

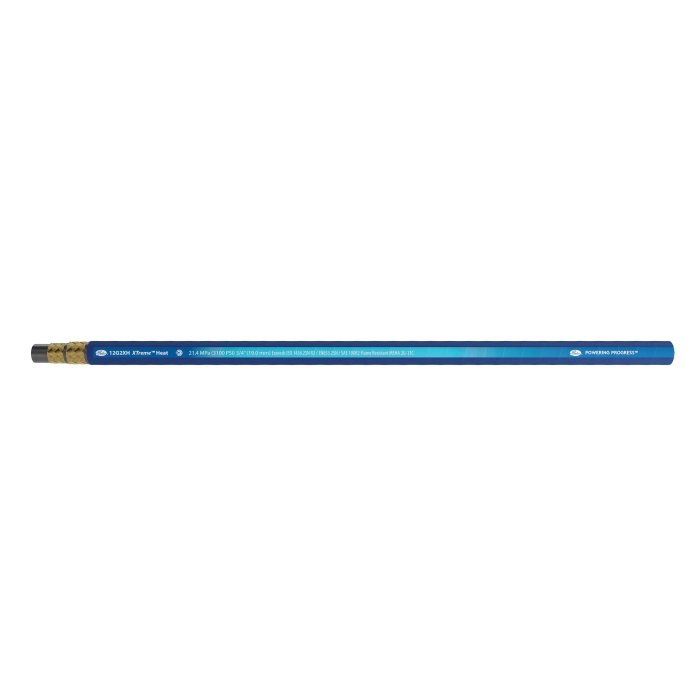

Gates® 12G2XH X50FT Global Hydraulic Hose, 3/4 in, 3/4 in ID, 1.15 in OD, 50 ft L, 3100 psi, Synthetic Rubber

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 12G2XHX50
  • MPN: 12G2XH X50FT
  • UPC: 770075257608
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Recommended for extremely high-temperature, high-pressure hydraulic oil line applications such as engine compartments, foundries, etc. Where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. Recommended couplings - GlobalSpiral™ couplings, GlobalSpiral™ Plus couplings, MegaCrimp® couplings, stainless steel B couplings (24 and 32).

Gates® Global Hydraulic Hose, 3/4 in Nominal, 3/4 in Inside Diameter, 1.15 in Outside Diameter, Temperature Low: -40 deg F, Temperature High: 300 deg F, 3100 psi, Synthetic Rubber, Synthetic Rubber Cover, 2-Braid Steel Wire Construction, 50 ft Length, Black/Blue, 9-1/2 in Bend Radius, Resistance Properties: Abrasion, Chemical, Flame, Heat, Oil, For Use With: MegaCrimp® Couplings

Product Type      :      Global Hydraulic Hose
Nominal Size      :      3/4 in
Inside Diameter      :      3/4 in
Outside Diameter      :      1.15 in
Temperature Low      :      -40 deg F
Temperature High      :      300 deg F
Pressure Rating      :      3100 psi
Material      :      Synthetic Rubber
Cover Material      :      Synthetic Rubber
Construction      :      2-Braid Steel Wire
Length      :      50 ft
Color      :      Black/Blue
Bend Radius      :      9-1/2 in
Resistance Properties      :      Abrasion, Chemical, Flame, Heat, Oil
For Use With      :      MegaCrimp® Couplings
  • Higher working pressure and burst pressure than SAE 100R2
  • Blue cover stock to indicate higher temperature hose
  • G2XH hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids and phosphate esters
  • Superior flex impulse performance - tested to 600000 impulse cycles 3-times the industry-standard
  • Certified to meet rail standard EN 45545-2, a globally accepted fire protection standard for railway vehicles
  • Reinforcement - two-braids of high-tensile steel wire
