Gates® 3658-0022

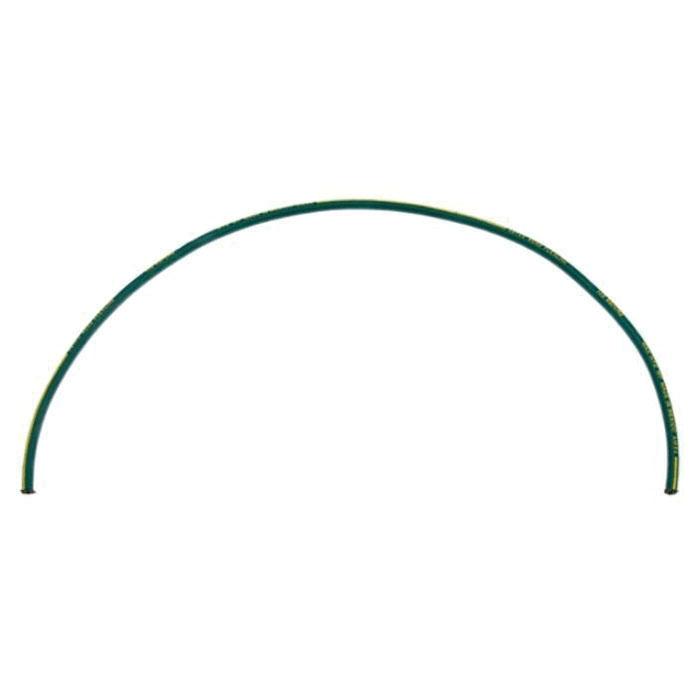

Gates® C5D Series 3658-0022 High-Temp Multi-Fluid Hose, 13/32 in, 13/32 in ID, 0.77 in OD, 1250 psi, Black/Green

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 8C5D
  • MPN: 3658-0022
  • UPC: 072053227765
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Gates® High-Temp Multi-Fluid Hose, C5D Series, 13/32 in Nominal, 08 Dash, 13/32 in Inside Diameter, 0.77 in Outside Diameter, Temperature Low: -40 deg F, Temperature High: 300 deg F, 1250 psi, Rubber Cover, Black/Green, 2 in Bend Radius, Resistance Properties: Heat, Mildew, Oil

Product Type      :      High-Temp Multi-Fluid Hose
Series      :      C5D Series
Nominal Size      :      13/32 in
Dash Size      :      08
Inside Diameter      :      13/32 in
Outside Diameter      :      0.77 in
Temperature Low      :      -40 deg F
Temperature High      :      300 deg F
Pressure Rating      :      1250 psi
Cover Material      :      Rubber
Color      :      Black/Green
Bend Radius      :      2 in
Resistance Properties      :      Heat, Mildew, Oil
  • Black, oil- and heat-resistant, synthetic rubber (CPE) tube
  • Green for easy identification, oil- and mildew-resistant, polyester braid impregnated with synthetic rubber cover
  • C5D meets or exceeds DOTFMVSS 106-74 Type All, SAE J1402 Type All and SAE J1405 and fuel-resistant of SAE J30R2
