Gates® 70541 GAT 5C5D | Tipco Technologies
Gates® 70541
Send Print
  1. pin-int

Gates® 70541

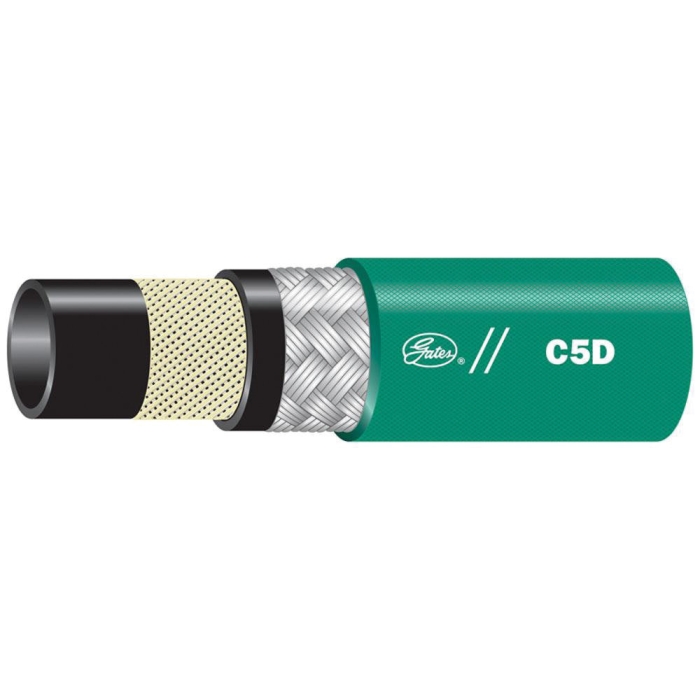

Gates® C5D Series 70541 Hydraulic Hose, 1/4 in ID, 0.58 in OD, 05, 1500 psi, Synthetic Rubber

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 5C5D
  • MPN: 70541
  • UPC: 072053227741
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Recommended for petroleum-base or phosphate ester fluids, diesel fuels and filtration lines, transmission coolant lines, hot lube oil lines, power steering, gasoline and turbocharger oil supplies. Tilt cab cylinder and air brakes. Not approved for bio-diesel. C5D (-4 to -12) meets or exceeds DOT FMVSS 106-74 Type All, SAE J1402 Type All and SAE J1405 and fuel resistance of SAE J30R2.

Gates® Hydraulic Hose, C5D Series, 05 Dash, 1/4 in Inside Diameter, 0.58 in Outside Diameter, Temperature Low: -40 deg F, Temperature High: 300 deg F, 1500 psi, Synthetic Rubber, Synthetic Rubber Cover, 1-Braid High Tensile Steel Wire Over 1-Braid Polyester Construction, 1-1/2 in Bend Radius, Resistance Properties: Mildew, Oil, For Use With: C5, C5x G34 Series Field Attachable Couplings

Product Type      :      Hydraulic Hose
Series      :      C5D Series
Dash Size      :      05
Inside Diameter      :      1/4 in
Outside Diameter      :      0.58 in
Temperature Low      :      -40 deg F
Temperature High      :      300 deg F
Pressure Rating      :      1500 psi
Material      :      Synthetic Rubber
Cover Material      :      Synthetic Rubber
Construction      :      1-Braid High Tensile Steel Wire Over 1-Braid Polyester
Bend Radius      :      1-1/2 in
Resistance Properties      :      Mildew, Oil
For Use With      :      C5, C5x G34 Series Field Attachable Couplings
  • Green for easy identification, oil and mildew-resistant, polyester braid impregnated with synthetic rubber cover
