Recommended for extremely high-temperature, high-pressure hydraulic oil line applications such as engine compartments, foundries, etc. Where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. Recommended couplings - GlobalSpiral™ couplings, GlobalSpiral™ Plus couplings, MegaCrimp® couplings, stainless steel B couplings (24 and 32).

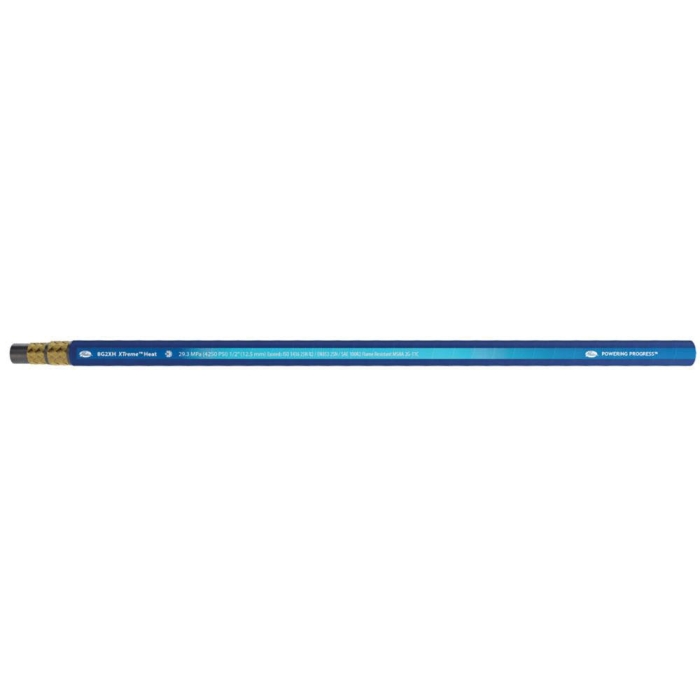

Gates® Hydraulic Hose, G2xH Series, 08 Dash, 1/2 in Inside Diameter, 0.86 in Outside Diameter, Temperature Low: -40 deg F, Temperature High: 300 deg F, 4250 psi, Synthetic Rubber, Polyethylene Cover, 2-Braid High Tensile Steel Wire Construction, 50 ft Length, 7 in Bend Radius, Resistance Properties: Flame, For Use With: GlobalSpiral™ G20 Series, GlobalSpiral™ Plus G22 Series, MegaCrimp® G25 Series, G17 Series Stainless Steel Braid Couplings
| Product Type | : | Hydraulic Hose |
| Series | : | G2xH Series |
| Dash Size | : | 08 |
| Inside Diameter | : | 1/2 in |
| Outside Diameter | : | 0.86 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 300 deg F |
| Pressure Rating | : | 4250 psi |
| Material | : | Synthetic Rubber |
| Cover Material | : | Polyethylene |
| Construction | : | 2-Braid High Tensile Steel Wire |
| Length | : | 50 ft |
| Bend Radius | : | 7 in |
| Resistance Properties | : | Flame |
| For Use With | : | GlobalSpiral™ G20 Series, GlobalSpiral™ Plus G22 Series, MegaCrimp® G25 Series, G17 Series Stainless Steel Braid Couplings |
- G2XH hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids and phosphate esters
- Superior flex impulse performance - tested to 600000 impulse cycles, 3X the industry-standard
- Certified to meet rail standard EN 45545-2, a globally accepted fire protection standard for railway vehicles
- -4 to -20 validated with MegaCrimp®
- Higher working pressure and burst pressure than SAE 100R2
- Meets flame-resistance acceptance designation MSHA 2G
- Blue cover stock to indicate higher temperature hose
