Gates® 36581977

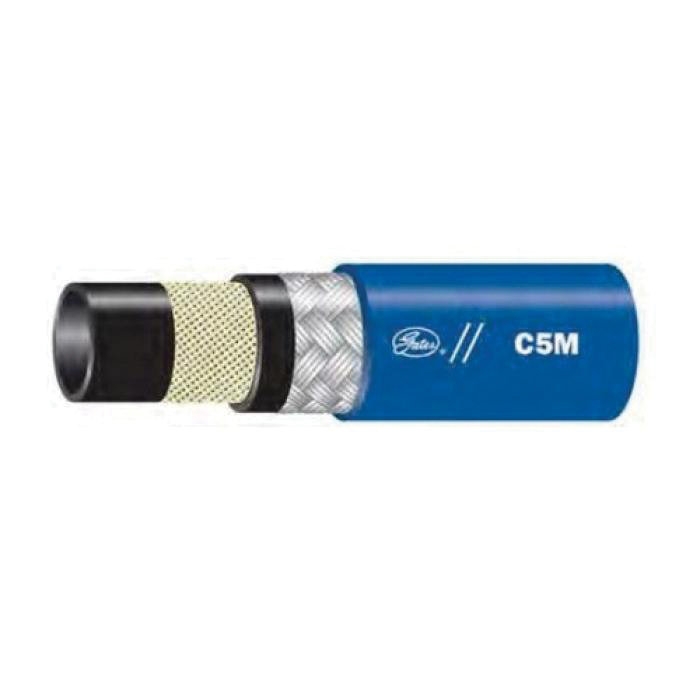

Gates® 10C5M Series 36581977 Hydraulic Marine Fuel Line Hose, 1/2 in, 1/2 in ID, 0.92 in OD, 3 ft L, 500 psi, Nitrile

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 10C5M
  • MPN: 36581977
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Gates® Hydraulic Marine Fuel Line Hose, 10C5M Series, 1/2 in Nominal, 0.92 in Outside Diameter, 1/2 in Inside Diameter, 3 ft Length, 500 psi, Nitrile, Nitrile Cover, Braided Construction, Black, 2.3 in Bend Radius, Resistance Properties: Flame, High Oil, Temperature Low: -4 deg F, Temperature High: 212 deg F

Product Type      :      Hydraulic Marine Fuel Line Hose
Series      :      10C5M Series
Nominal Size      :      1/2 in
Outside Diameter      :      0.92 in
Inside Diameter      :      1/2 in
Length      :      3 ft
Pressure Rating      :      500 psi
Material      :      Nitrile
Cover Material      :      Nitrile
Construction      :      Braided
Color      :      Black
Bend Radius      :      2.3 in
Resistance Properties      :      Flame, High Oil
Temperature Low      :      -4 deg F
Temperature High      :      212 deg F
  • 4 to 1 design factor
