TIPCO Technologies T-TRACER TT807-08

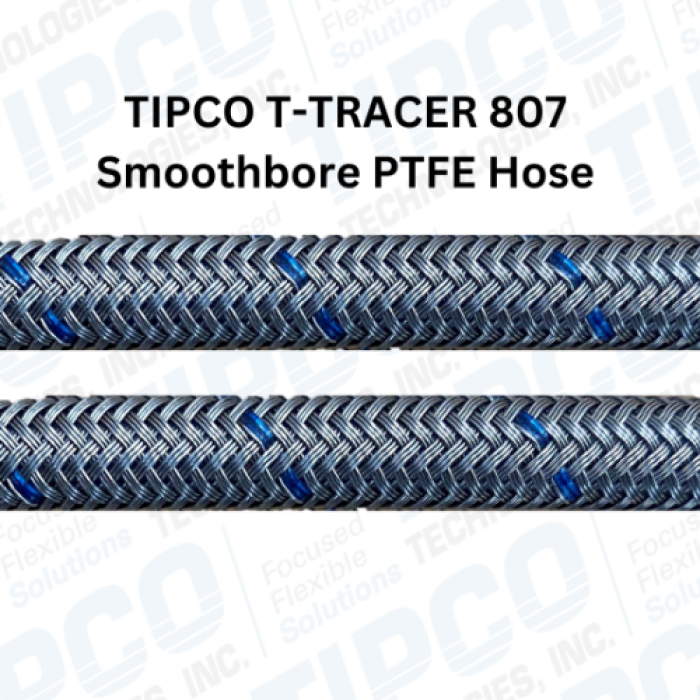

TIPCO T-TRACER 807 Smoothbore PTFE Hose; T-TRACER TT807-08; 0.405 in ID; 0.549 in OD; sold by the foot.

  • Manufacturers: TIPCO Technologies
  • Brand Name: TIPCO Technologies
  • Tipco Part No: T-TRACER TT807-08
  • MPN: T-TRACER TT807-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

TIPCO T-TRACER 807 Smoothbore PTFE Hose; T-TRACER TT807-08; 0.405 inch inside diameter; 0.549 inch outside diameter; 2,000 PSI operating pressure; 8,000 PSI burst pressure; sold by the foot.

Burst Pressure      :      8000 psi
Operating Pressure      :      2000 psi
Temperature Range      :      108°F - 468°F (-60°C-260°C)
Inside Diameter      :      0.405 in
Outside Diameter      :      0.549 in
Cover Material      :      304 Stainless Steel
Construction      :      304 Stainless Steel Wire Reinforcement
Bend Radius      :      5.2 in

T-TRACER 807 PTFE hose is an excellent choice in applications requiring steam cleaning or transfer of highly viscous media such as, adhesives, paints or food products. The 304 stainless steel wire reinforcement provides the strength necessary to carry the working pressure and the durability to withstand harsh environments. High temperature hydraulic and pneumatic systems, like those found in steel mills, foundries, transit buses and air compressors are ideal applications for TIPCO T-TRACER 807.
