Winner by Danfoss EN-12TW

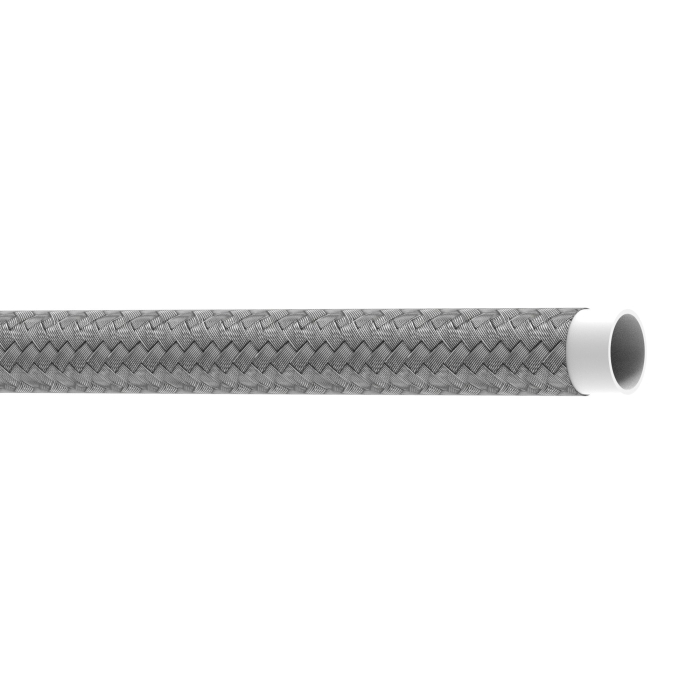

Winner by Danfoss EN-TW Series EN-12TW Hose, 0.63 in ID, 0.78 in OD, 12, 1250 psi, PTFE, Stainless Steel Cover
- Manufacturers: Danfoss
- Brand Name: Winner by Danfoss
- Tipco Part No: DANFOSS EN-12TW
- MPN: EN-12TW
- UPC: 678146191212
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Danfosss Everflex hoses are the premier choice for hose products made from premium grade Teflon™ fluoropolymer for use in truck, chemical, hot melt, steam, packaging, paint, machinery, and many other demanding applications. The Danfoss Winner PTFE hoses compliment the Everflex family of products by providing performance that meets SAE 100R14 and are ideally suited for use in applications where high and low temperature, chemical resistance, low coefficient of friction, flexibility, and non-aging characteristics are required.
Winner by Danfoss Hose, -65 to 457 Temperature Range, 5000 Burst Pressure, EN-TW Series, 12 Dash, 0.63 Inside Diameter, 0.78 Outside Diameter, -65 Temperature Low, 457 Temperature High, 1250, SAE Rating: SAE J1899, PTFE, Stainless Steel Cover, 1-Wire Braided Construction, Stainless steel, 7.87 Bend Radius, Resistance Properties: Abrasion
| Burst Pressure | : | 5000 psi |
| Temperature Range | : | -65 to 457 deg F |
| Series | : | EN-TW Series |
| Dash Size | : | 12 |
| Inside Diameter | : | 0.63 in |
| Outside Diameter | : | 0.78 in |
| Temperature Low | : | -65 deg F |
| Temperature High | : | 457 deg F |
| Pressure Rating | : | 1250 psi |
| SAE Rating | : | SAE J1899 |
| Material | : | PTFE |
| Cover Material | : | Stainless Steel |
| Construction | : | 1-Wire Braided |
| Color | : | Stainless steel |
| Bend Radius | : | 7.87 in |
| Resistance Properties | : | Abrasion |
- Non-conductive Teflon™ fluoropolymer inner tube
- One or two layers of stainless steel wire braid
