Aeroquip® GH493-8
Send Print
  1. pin-int

Aeroquip® GH493-8

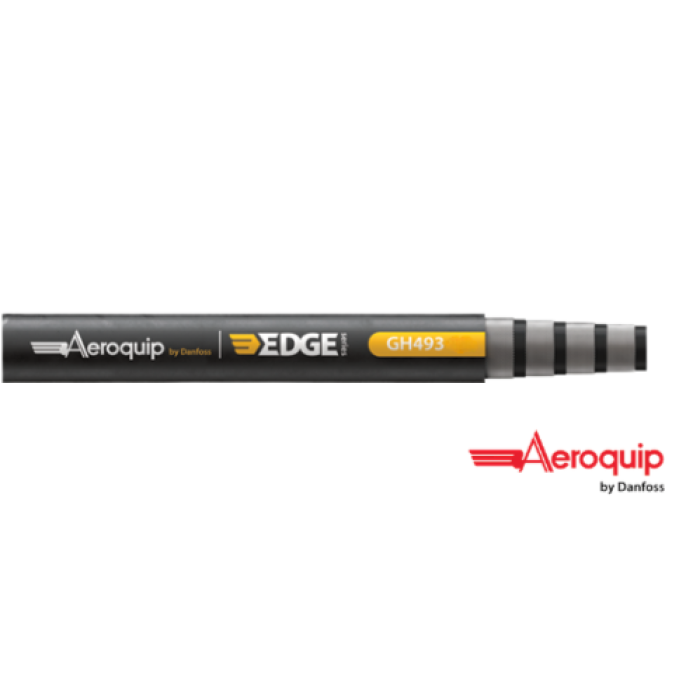

Aeroquip® EDGE® Global GH493 Black Synthetic Rubber Hydraulic Spiral Hose, 1/2 in, 1 ft L, 6000 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER GH493-8
  • MPN: GH493-8
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® EDGE® Global Hydraulic Spiral Hose, GH493 Series, Nominal Size: 1/2 in, Dash Size: 08, 0.96 in OD, 0.50 in ID, 0.21 in Thick Wall, 1 ft Length, 6000 psi, SAE Rating: SAE 100R12 / EN 856 R12, Synthetic Rubber, DURA-TUFF™ Synthetic Rubber Cover, Construction: 4-Spiral Wire, Black, 7.09 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 260 deg F High

Product Type      :      Hydraulic Spiral Hose
Series      :      GH493
Nominal Size      :      1/2 in
Dash Size      :      08
Inside Diameter      :      0.50 in
Outside Diameter      :      0.96 in
Temperature Low      :      -40 deg F
Temperature High      :      260 deg F
Pressure Rating      :      6000 psi
SAE Rating      :      SAE 100R12 / EN 856 R12
Material      :      Synthetic Rubber
Cover Material      :      DURA-TUFF™ Synthetic Rubber
Construction      :      4-Spiral Wire
Wall Thickness      :      0.21 in
Color      :      Black
Length      :      1 ft
Bend Radius      :      7.09 in
Resistance Properties      :      Abrasion
Cover      :      DuraTUFF+™ Premier abrasion

Applications: Hydraulic system service with petroleum and water-based fluids, for general use
